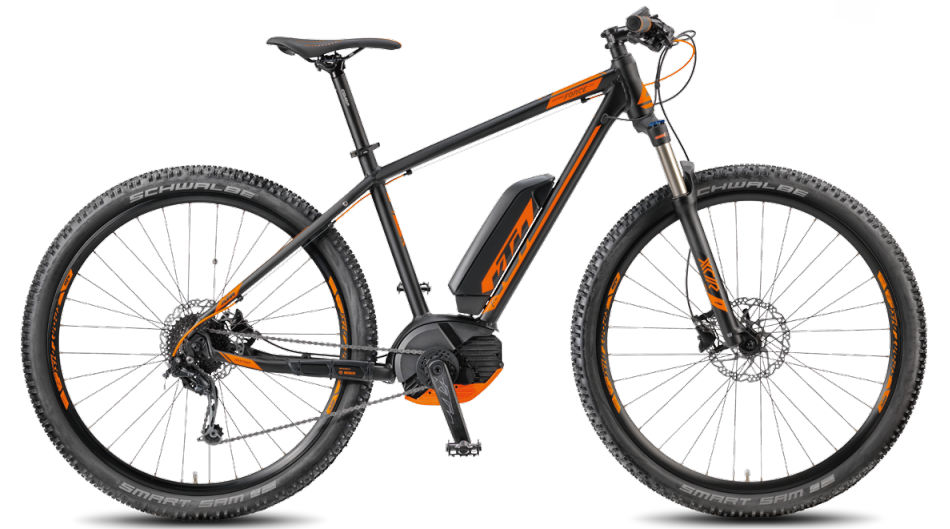

2018 KTM Macina Force geometry
Full frame geometry for the 2018 KTM Macina Force, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 622 | 382 | 73 | 71.5 | 120 | 589 | 791 | 62 | 497 | 1105 |
| 48 | 627 | 402 | 73 | 71.5 | 125 | 607 | 818 | 62 | 497 | 1127 |
| 53 | 638 | 418 | 73 | 71.5 | 137 | 625 | 847 | 62 | 497 | 1146 |
All measurements in millimetres unless marked (°) for angles.
