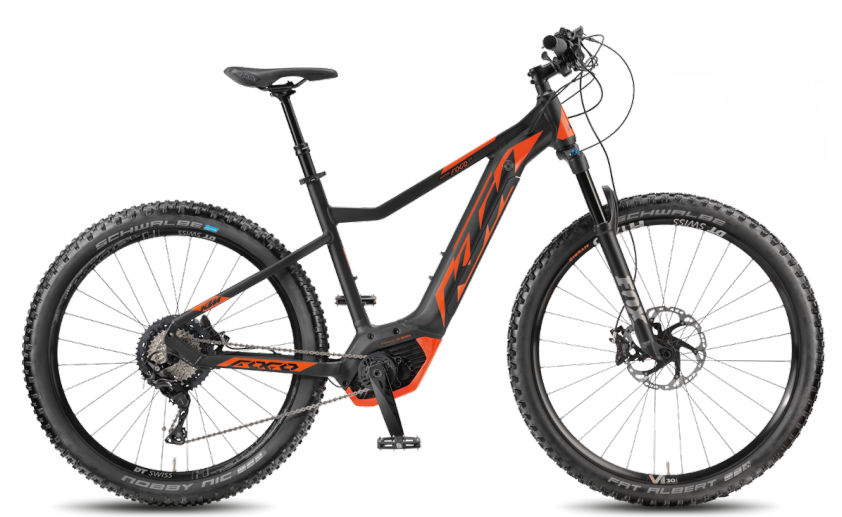

2018 KTM Macina Fogo geometry
Full frame geometry for the 2018 KTM Macina Fogo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 637 | 380 | 73 | 69 | 120 | 588 | 774 | 52 | 472 | 1114 |
| 48 | 644 | 369 | 73 | 69.5 | 125 | 605 | 789 | 52 | 472 | 1127 |
| 53 | 647 | 423 | 73 | 69.5 | 137 | 626 | 812 | 52 | 472 | 1147 |
All measurements in millimetres unless marked (°) for angles.
