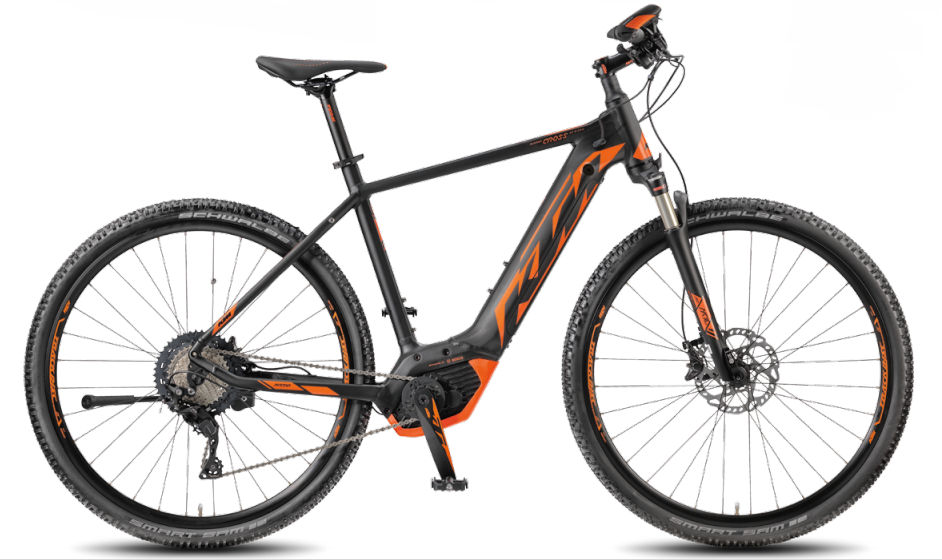

2018 KTM Macina Cross Man geometry
Full frame geometry for the 2018 KTM Macina Cross Man, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 582 | 397 | 73 | 70.5 | 120 | 575 | 776 | 55 | 463 | 1088 |
| 51 | 599 | 405 | 73 | 70.5 | 137 | 588 | 808 | 55 | 463 | 1101 |
| 56 | 615 | 411 | 73 | 70.5 | 155 | 599 | 839 | 55 | 463 | 1113 |
| 60 | 633 | 422 | 73 | 70.5 | 174 | 615 | 867 | 55 | 463 | 1130 |
All measurements in millimetres unless marked (°) for angles.
