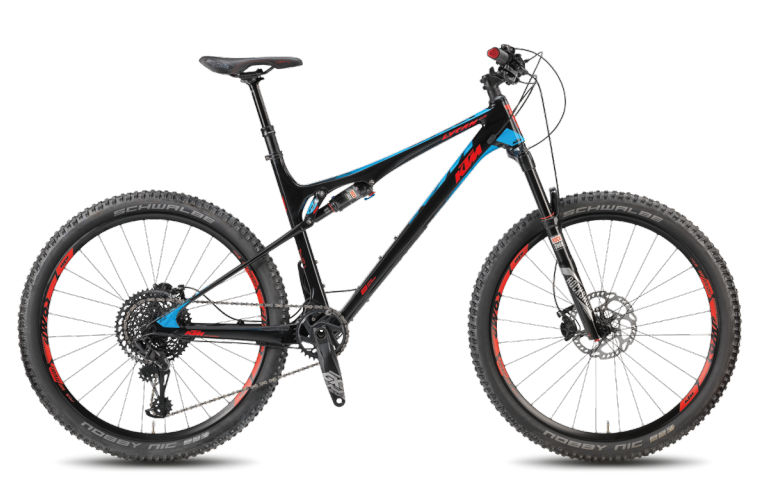

2018 KTM Lycan geometry
Full frame geometry for the 2018 KTM Lycan, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 38 | 578 | 420 | 74.5 | 68.5 | 105 | 580 | 18 | 433 | 1120 |
| 43 | 587 | 437 | 74.5 | 68.5 | 115 | 600 | 18 | 433 | 1141 |
| 48 | 597 | 464 | 74.5 | 68.5 | 125 | 620 | 18 | 433 | 1161 |
| 53 | 606 | 472 | 74.5 | 68.5 | 135 | 640 | 18 | 433 | 1183 |
All measurements in millimetres unless marked (°) for angles.
