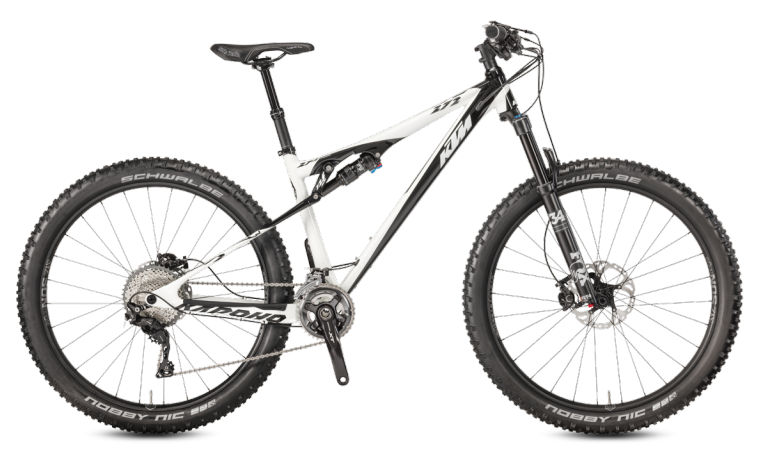

2018 KTM Kapoho geometry
Full frame geometry for the 2018 KTM Kapoho, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 40 | 606 | 412 | 74.5 | 68.5 | 95 | 580 | 35 | 445 | 1136 |
| 43 | 615 | 429 | 74.5 | 68.5 | 105 | 600 | 35 | 445 | 1156 |
| 48 | 625 | 447 | 74.5 | 68.5 | 115 | 620 | 35 | 445 | 1178 |
| 53 | 634 | 464 | 74.5 | 68.5 | 125 | 640 | 35 | 445 | 1199 |
All measurements in millimetres unless marked (°) for angles.
