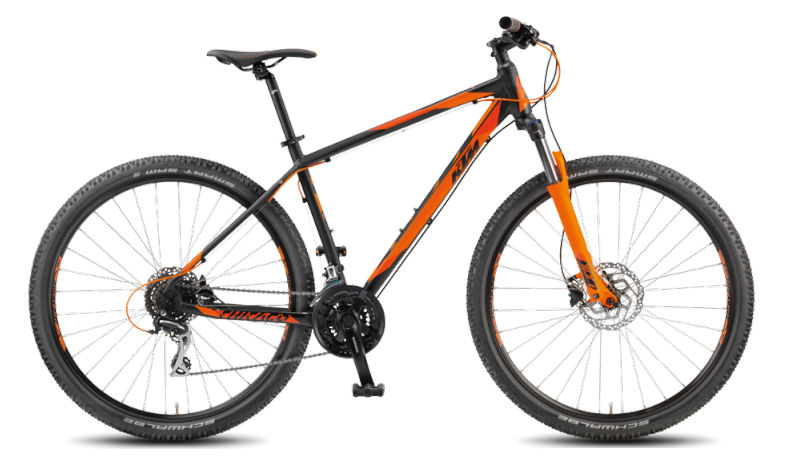

2018 KTM Chicago 29 geometry
Full frame geometry for the 2018 KTM Chicago 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 616 | 381 | 73 | 70.5 | 120 | 569 | 782 | 62 | 455 | 1070 |
| 43 | 617 | 401 | 73 | 70.5 | 120 | 589 | 791 | 62 | 455 | 1090 |
| 48 | 623 | 416 | 73 | 71 | 125 | 607 | 818 | 62 | 455 | 1102 |
| 53 | 634 | 432 | 73 | 71 | 137 | 626 | 847 | 62 | 455 | 1122 |
| 57 | 647 | 445 | 73 | 71 | 150 | 643 | 872 | 62 | 455 | 1139 |
All measurements in millimetres unless marked (°) for angles.
