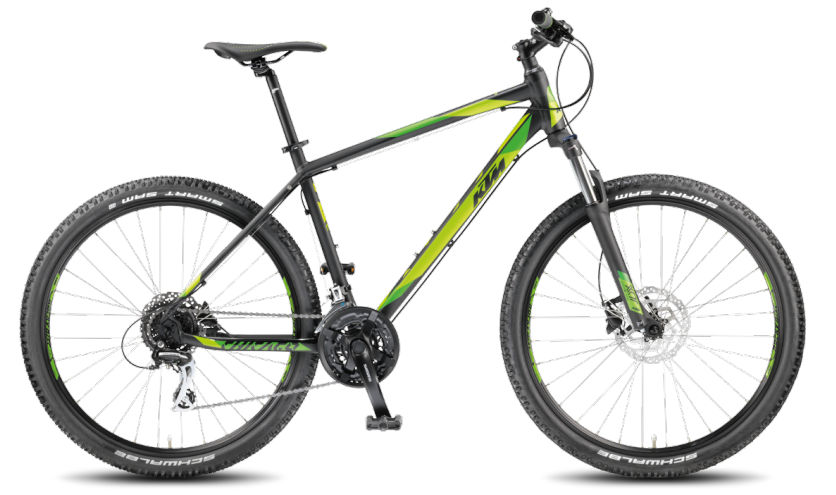

2018 KTM Chicago 27 geometry
Full frame geometry for the 2018 KTM Chicago 27, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 36 | 589 | 374 | 73 | 70 | 120 | 554 | 751 | 47 | 435 | 1046 |
| 43 | 593 | 393 | 73 | 70 | 125 | 575 | 776 | 47 | 435 | 1067 |
| 48 | 605 | 409 | 73 | 70 | 137 | 594 | 805 | 47 | 435 | 1087 |
| 53 | 617 | 423 | 73 | 70 | 150 | 612 | 835 | 47 | 435 | 1105 |
All measurements in millimetres unless marked (°) for angles.
