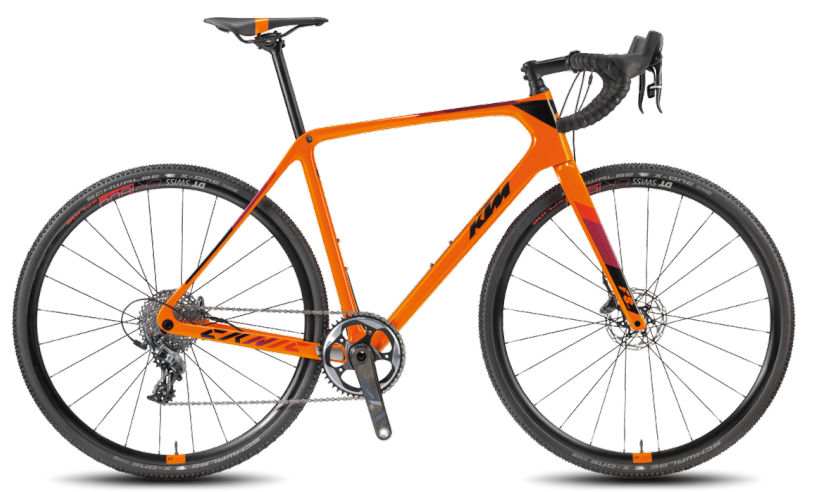

2018 KTM Canic CXC geometry
Full frame geometry for the 2018 KTM Canic CXC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 542 | 365 | 75 | 71 | 130 | 510 | 763 | 72 | 425 | 991 |
| 52 | 558 | 380 | 75 | 71.5 | 145 | 530 | 785 | 72 | 425 | 1007 |
| 55 | 572 | 391 | 74.5 | 71.5 | 160 | 550 | 805 | 72 | 425 | 1023 |
| 57 | 582 | 396 | 74 | 72 | 170 | 563 | 821 | 70 | 425 | 1027 |
| 59 | 594 | 400 | 73.5 | 72 | 185 | 576 | 838 | 68 | 425 | 1036 |
All measurements in millimetres unless marked (°) for angles.
