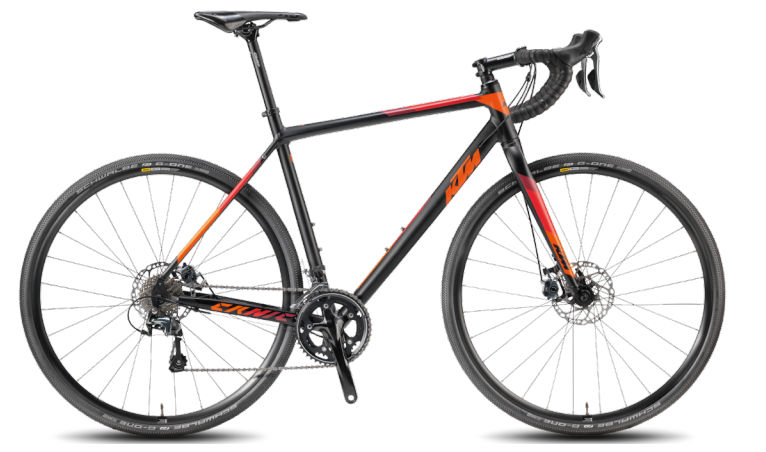

2018 KTM Canic CXA geometry
Full frame geometry for the 2018 KTM Canic CXA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 580 | 374 | 75 | 71.5 | 130 | 529 | 771 | 72 | 425 | 1008 |
| 55 | 594 | 385 | 74.5 | 71.5 | 145 | 550 | 792 | 72 | 425 | 1024 |
| 57 | 608 | 385 | 74 | 72 | 160 | 560 | 810 | 70 | 425 | 1025 |
| 59 | 621 | 388 | 73.5 | 72 | 175 | 572 | 831 | 68 | 425 | 1033 |
All measurements in millimetres unless marked (°) for angles.
