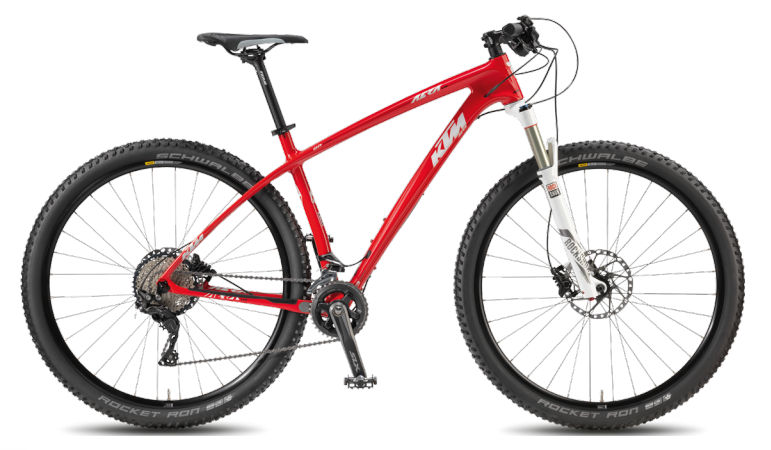

2018 KTM Aera geometry
Full frame geometry for the 2018 KTM Aera, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 628 | 391 | 73 | 71.5 | 120 | 583 | 802 | 70 | 440 | 1054 |
| 48 | 628 | 414 | 73 | 71.5 | 120 | 606 | 812 | 70 | 440 | 1078 |
| 53 | 638 | 431 | 73 | 71.5 | 130 | 628 | 844 | 70 | 440 | 1097 |
All measurements in millimetres unless marked (°) for angles.
