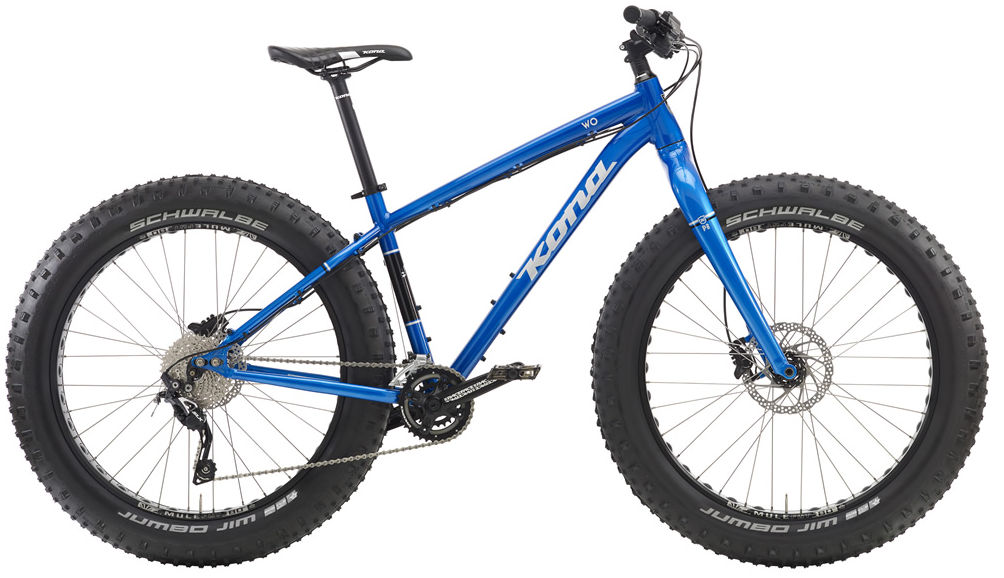

2016 Kona Wo MK I geometry
Full frame geometry for the 2016 Kona Wo MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 591 | 391 | 73 | 70 | 115 | 572 | 381 | 680 | 60 | 639 | 455 | 1087 | 48 |
| M | 601 | 413 | 73 | 70 | 125 | 597 | 432 | 720 | 60 | 664 | 455 | 1112 | 48 |
| L | 610 | 435 | 73 | 70 | 135 | 622 | 483 | 750 | 60 | 689 | 455 | 1138 | 48 |
| XL | 624 | 457 | 73 | 70 | 150 | 648 | 533 | 763 | 60 | 716 | 455 | 1165 | 48 |
All measurements in millimetres unless marked (°) for angles.
