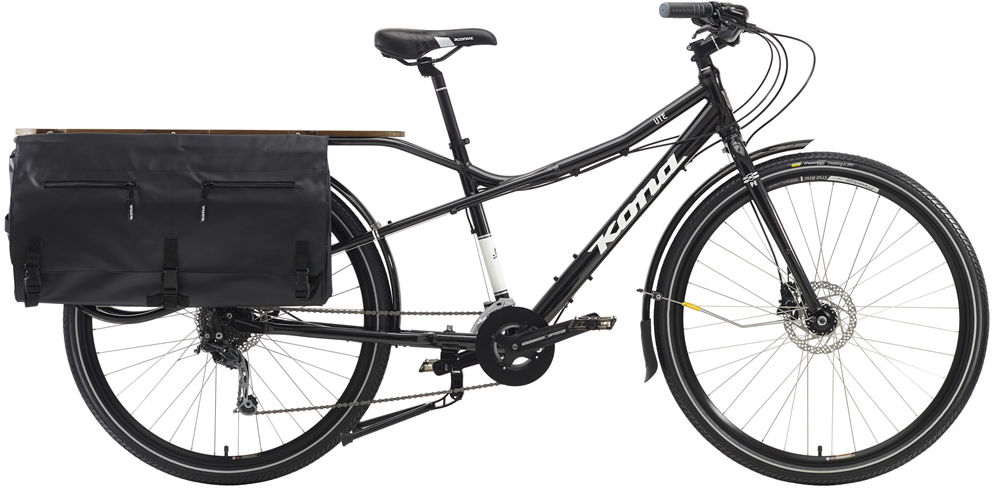

2016 Kona Ute geometry
Full frame geometry for the 2016 Kona Ute, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 | 581 | 421 | 74 | 71 | 135 | 587 | 457 | 730 | 50 | 652 | 625 | 1273 | 44 |
| 20 | 592 | 442 | 74 | 71 | 150 | 613 | 508 | 737 | 50 | 677 | 625 | 1299 | 44 |
All measurements in millimetres unless marked (°) for angles.
