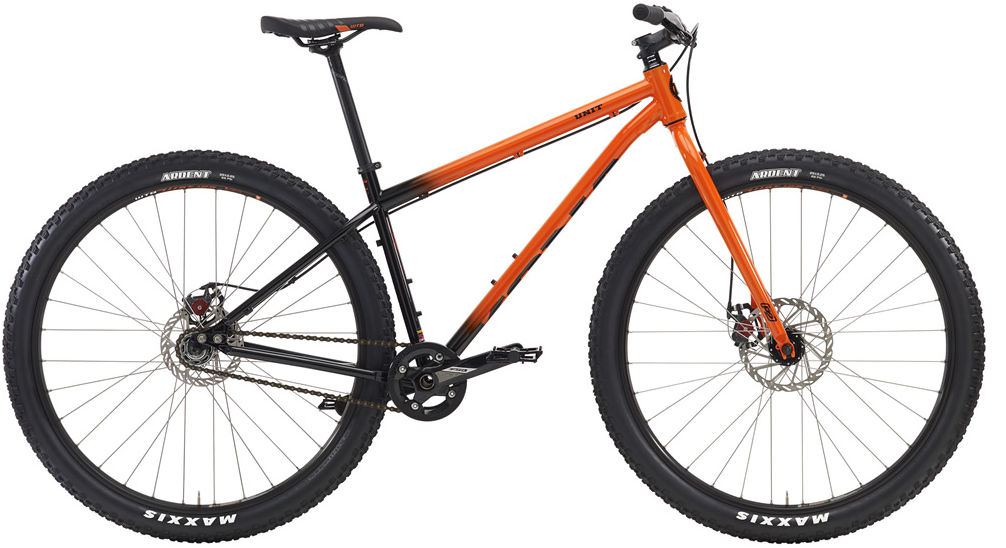

2016 Kona Unit MK I geometry
Full frame geometry for the 2016 Kona Unit MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 575 | 403 | 74 | 69 | 95 | 568 | 370 | 660 | 60 | 652 | 434 | 1079 | 45 |
| M | 584 | 429 | 74 | 69 | 105 | 596 | 420 | 700 | 60 | 681 | 434 | 1108 | 45 |
| L | 594 | 453 | 74 | 69 | 115 | 623 | 470 | 745 | 60 | 708 | 434 | 1136 | 45 |
| XL | 603 | 483 | 74 | 69 | 125 | 656 | 530 | 790 | 60 | 742 | 434 | 1170 | 45 |
All measurements in millimetres unless marked (°) for angles.
