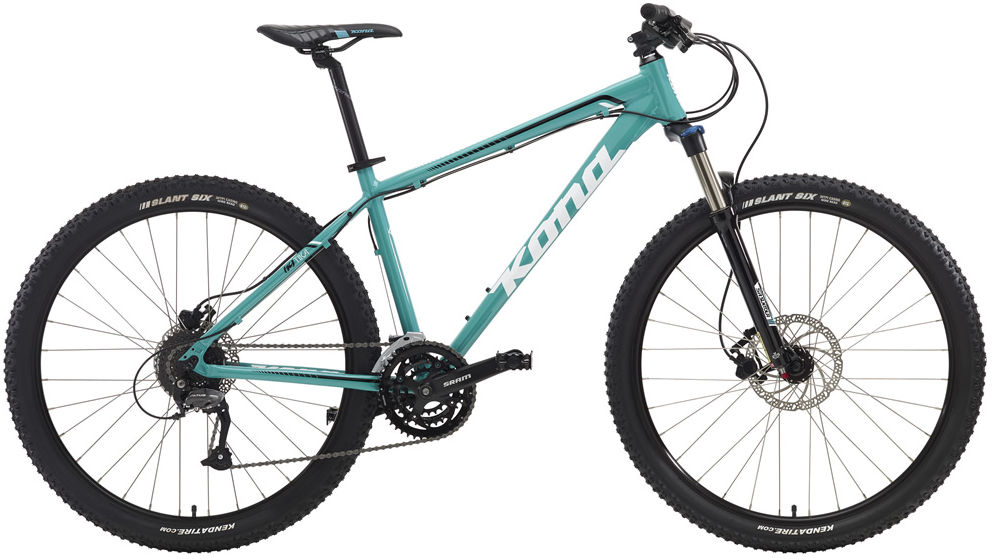

2016 Kona Tika MK I geometry
Full frame geometry for the 2016 Kona Tika MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 569 | 383 | 74 | 68 | 110 | 546 | 330 | 631 | 30 | 643 | 425 | 1059 | 39 |
| S | 584 | 392 | 74 | 68.5 | 100 | 559 | 381 | 675 | 50 | 649 | 435 | 1079 | 42 |
| M | 597 | 413 | 74 | 68.5 | 115 | 584 | 432 | 720 | 50 | 675 | 435 | 1106 | 42 |
| L | 607 | 435 | 74 | 68.5 | 125 | 609 | 457 | 740 | 50 | 701 | 435 | 1132 | 42 |
All measurements in millimetres unless marked (°) for angles.
