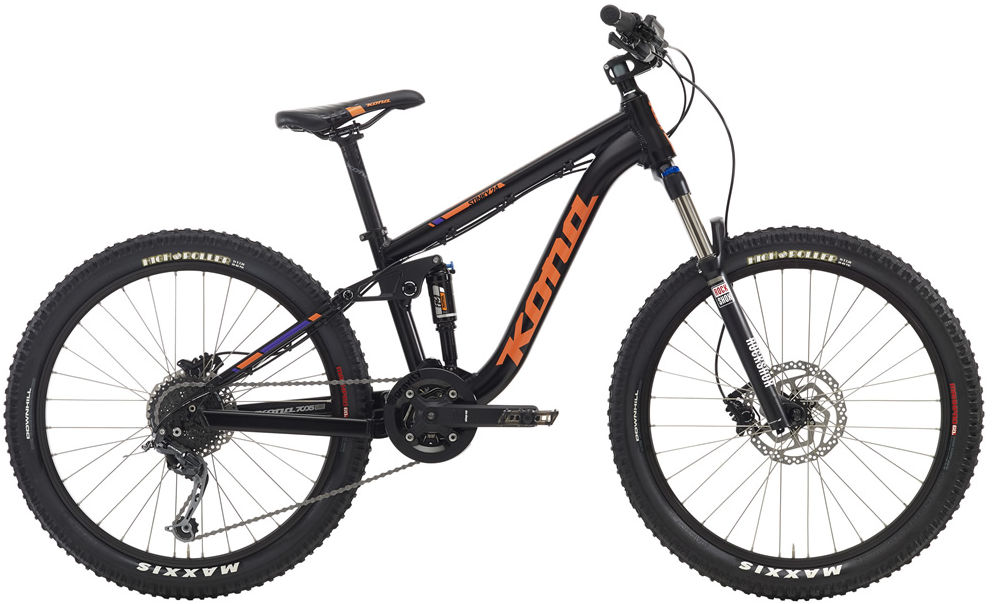

2016 Kona Stinky 24 geometry
Full frame geometry for the 2016 Kona Stinky 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 530 | 348 | 73.5 | 67 | 115 | 505 | 330 | 655 | 0 | 618 | 414 | 1032 | 40 |
All measurements in millimetres unless marked (°) for angles.
