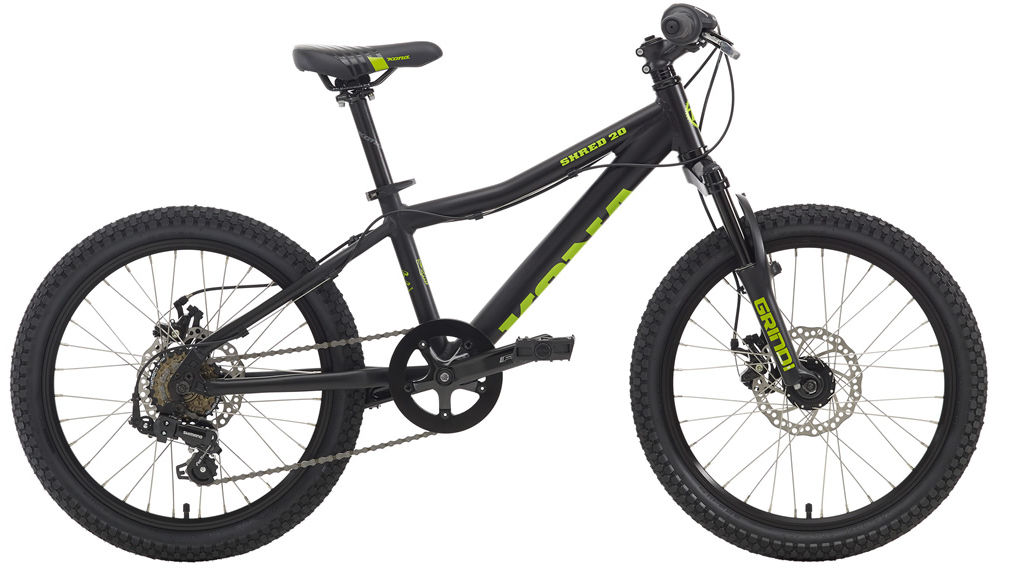

2016 Kona Shred 20 geometry
Full frame geometry for the 2016 Kona Shred 20, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11 | 402 | 323 | 72.5 | 69.5 | 95 | 450 | 280 | 655 | 0 | 520 | 375 | 895 | 40 |
All measurements in millimetres unless marked (°) for angles.
