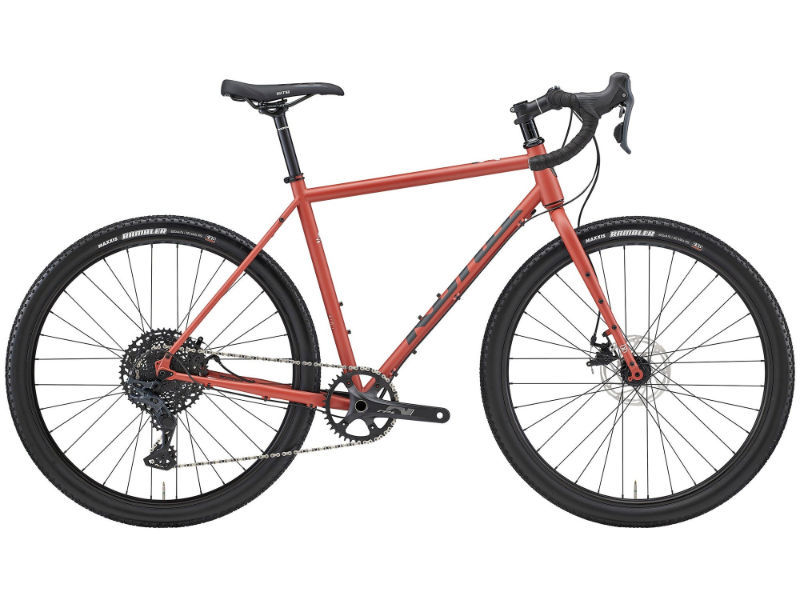

2026 Kona Rove geometry
Full frame geometry for the 2026 Kona Rove, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 532 | 372 | 75 | 70.5 | 90 | 515 | 480 | 735 | 74 | 592 | 435 | 1016 | 50 |
| 50 | 551 | 378 | 74.5 | 70.5 | 110 | 531 | 500 | 754 | 74 | 604 | 435 | 1029 | 50 |
| 52 | 570 | 383 | 74 | 71 | 130 | 546 | 520 | 775 | 72 | 612 | 435 | 1036 | 50 |
| 54 | 588 | 388 | 73.5 | 71 | 150 | 562 | 540 | 794 | 72 | 623 | 435 | 1048 | 50 |
| 56 | 607 | 392 | 73 | 71.5 | 170 | 578 | 560 | 815 | 70 | 628 | 435 | 1054 | 50 |
| 58 | 626 | 400 | 72.5 | 71.5 | 190 | 598 | 580 | 834 | 70 | 643 | 435 | 1068 | 50 |
All measurements in millimetres unless marked (°) for angles.
