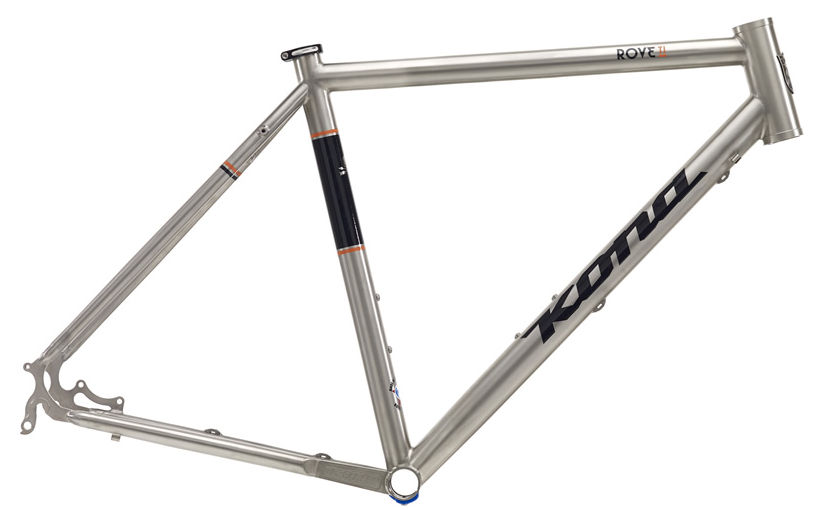

2016 Kona Rove Ti geometry
Full frame geometry for the 2016 Kona Rove Ti, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 549 | 378 | 74 | 70.5 | 120 | 535 | 490 | 765 | 65 | 598 | 435 | 1025 | 43 |
| 53 | 575 | 380 | 73.5 | 71 | 145 | 550 | 530 | 795 | 65 | 604 | 435 | 1031 | 43 |
| 56 | 585 | 383 | 73 | 71.5 | 155 | 565 | 560 | 820 | 65 | 605 | 435 | 1032 | 43 |
| 59 | 615 | 396 | 73 | 72 | 185 | 585 | 590 | 845 | 65 | 624 | 435 | 1050 | 43 |
| 61 | 628 | 409 | 72.5 | 72.5 | 195 | 605 | 610 | 860 | 65 | 633 | 435 | 1058 | 43 |
All measurements in millimetres unless marked (°) for angles.
