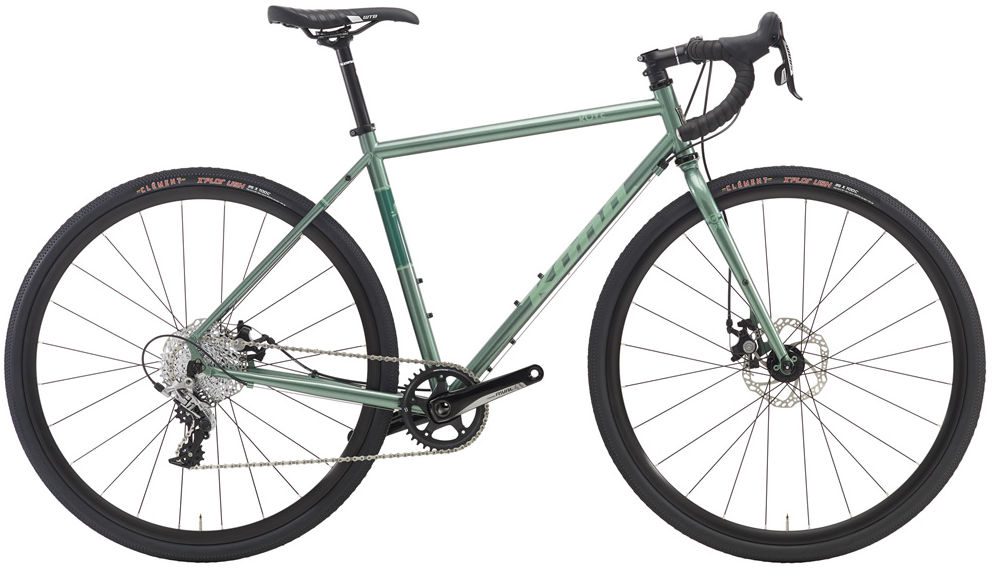

2016 Kona Rove ST MK I geometry
Full frame geometry for the 2016 Kona Rove ST MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/48 | 540 | 374 | 75 | 70.5 | 100 | 519 | 480 | 740 | 72 | 592 | 435 | 1017 | 45 |
| SM/49.5 | 549 | 379 | 74.5 | 70.5 | 110 | 532 | 495 | 755 | 72 | 600 | 435 | 1025 | 45 |
| M/51 | 559 | 385 | 74 | 70.5 | 120 | 545 | 510 | 770 | 72 | 609 | 435 | 1034 | 45 |
| ML/54 | 584 | 388 | 73.5 | 71.5 | 145 | 561 | 540 | 800 | 70 | 611 | 435 | 1037 | 45 |
| L/57 | 603 | 392 | 73 | 71.5 | 165 | 576 | 570 | 825 | 70 | 622 | 435 | 1047 | 45 |
| XL/59 | 622 | 398 | 72.5 | 71.5 | 185 | 594 | 590 | 845 | 70 | 634 | 435 | 1060 | 45 |
All measurements in millimetres unless marked (°) for angles.
