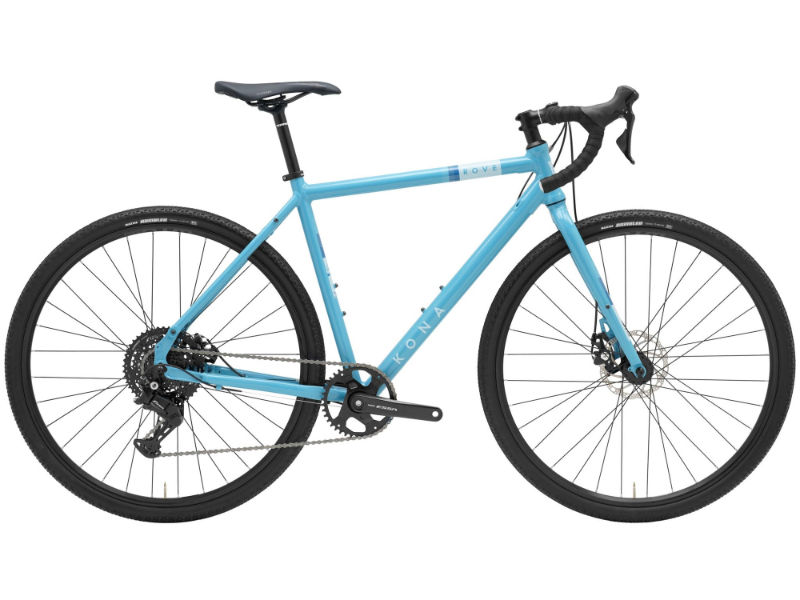

2026 Kona Rove AL geometry
Full frame geometry for the 2026 Kona Rove AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 528 | 380 | 75 | 69.5 | 90 | 522 | 480 | 745 | 74 | 608 | 435 | 1032 | 50 |
| 50 | 547 | 385 | 74.5 | 69.5 | 110 | 537 | 500 | 765 | 74 | 620 | 435 | 1044 | 50 |
| 52 | 566 | 390 | 74 | 70 | 130 | 552 | 520 | 786 | 72 | 627 | 435 | 1052 | 50 |
| 54 | 584 | 395 | 73.5 | 70 | 150 | 568 | 540 | 805 | 72 | 639 | 435 | 1064 | 50 |
| 56 | 601 | 400 | 73 | 70 | 170 | 584 | 560 | 825 | 70 | 650 | 435 | 1076 | 50 |
| 58 | 620 | 405 | 72.5 | 70 | 190 | 601 | 580 | 843 | 70 | 662 | 435 | 1091 | 50 |
All measurements in millimetres unless marked (°) for angles.
