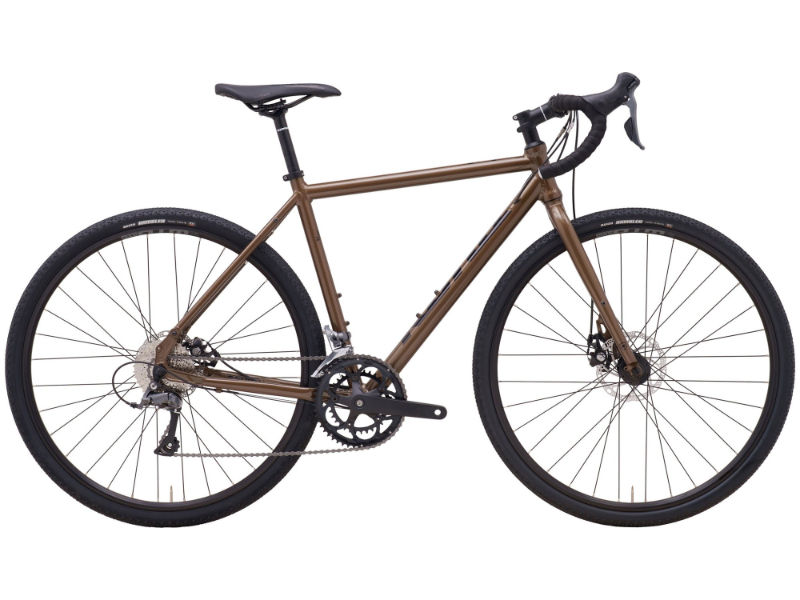

2026 Kona Rove AL 700 geometry
Full frame geometry for the 2026 Kona Rove AL 700, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 532 | 373 | 74 | 70.5 | 90 | 516 | 480 | 746 | 74 | 588 | 435 | 1012 | 45 |
| 50 | 551 | 378 | 74 | 70.5 | 110 | 531 | 500 | 765 | 74 | 599 | 435 | 1023 | 45 |
| 52 | 570 | 385 | 72 | 71 | 130 | 549 | 520 | 785 | 72 | 608 | 435 | 1033 | 45 |
| 54 | 589 | 388 | 72 | 71 | 150 | 563 | 540 | 805 | 72 | 618 | 435 | 1043 | 45 |
| 56 | 608 | 392 | 70 | 71.5 | 170 | 578 | 560 | 825 | 70 | 623 | 435 | 1049 | 45 |
| 58 | 632 | 400 | 70 | 71.5 | 195 | 599 | 580 | 845 | 70 | 639 | 435 | 1065 | 45 |
All measurements in millimetres unless marked (°) for angles.
