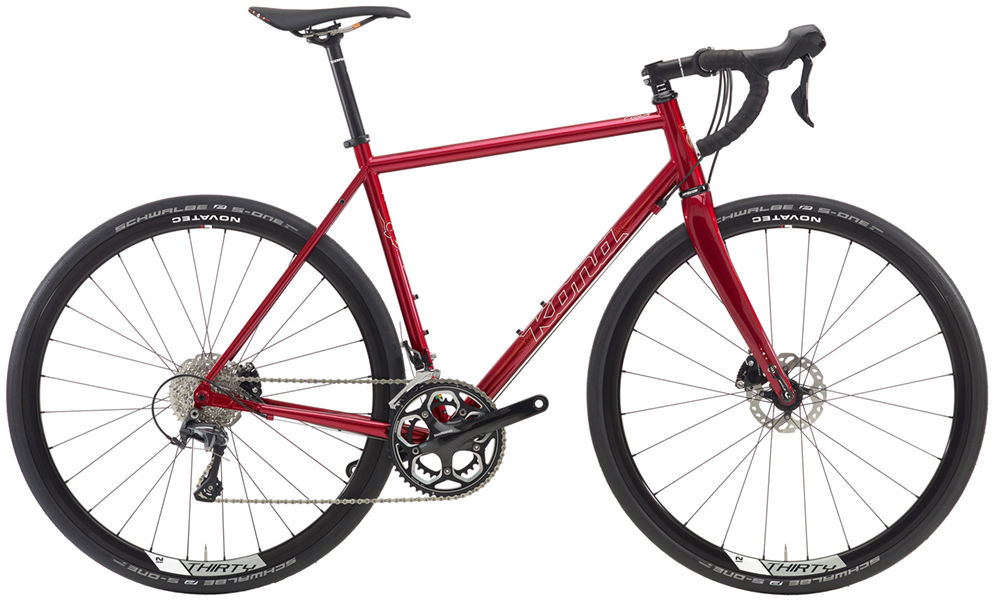

2016 Kona Roadhouse geometry
Full frame geometry for the 2016 Kona Roadhouse, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 542 | 370 | 74.5 | 71 | 115 | 520 | 490 | 728 | 76 | 583 | 422 | 993 | 45 |
| 52 | 564 | 374 | 74 | 72 | 135 | 535 | 520 | 755 | 76 | 584 | 422 | 994 | 45 |
| 54 | 581 | 378 | 73.5 | 72 | 155 | 550 | 540 | 776 | 74 | 595 | 422 | 1005 | 45 |
| 56 | 596 | 383 | 73 | 72 | 175 | 565 | 560 | 795 | 74 | 604 | 422 | 1015 | 45 |
| 58 | 619 | 391 | 73 | 72.5 | 195 | 580 | 580 | 817 | 72 | 615 | 425 | 1029 | 45 |
| 61 | 640 | 398 | 72.5 | 73 | 215 | 600 | 610 | 844 | 72 | 623 | 425 | 1038 | 45 |
All measurements in millimetres unless marked (°) for angles.
