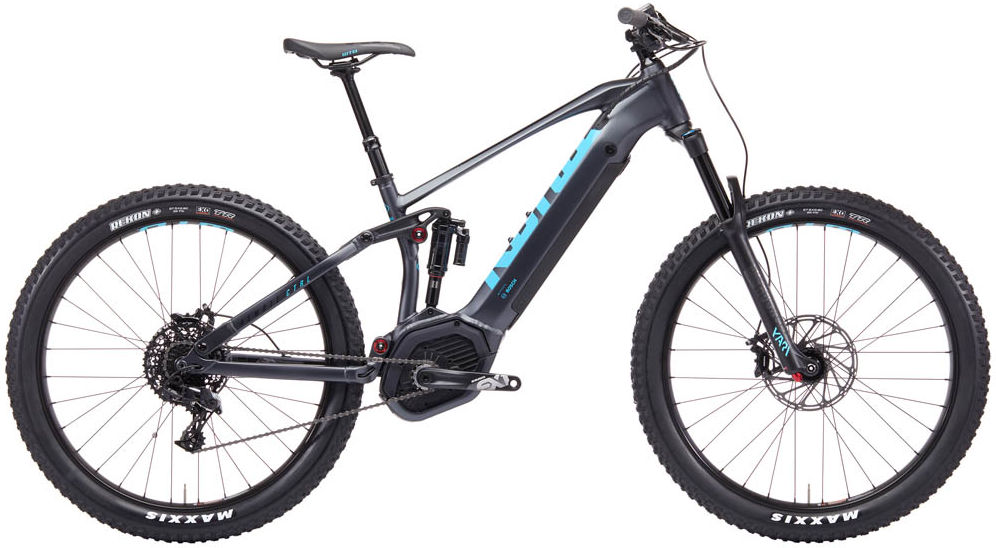

2018 Kona Remote CTRL geometry
Full frame geometry for the 2018 Kona Remote CTRL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 626 | 475 | 74.3 | 66 | 130 | 654 | 460 | 770 | 15 | 803 | 485 | 1287 | 51 |
| M | 626 | 450 | 74.3 | 66 | 130 | 629 | 410 | 778 | 15 | 778 | 485 | 1262 | 51 |
| S | 626 | 425 | 74.3 | 66 | 130 | 604 | 405 | 790 | 15 | 753 | 485 | 1237 | 51 |
| XL | 635 | 510 | 74.2 | 66 | 140 | 692 | 485 | 790 | 15 | 842 | 485 | 1327 | 51 |
All measurements in millimetres unless marked (°) for angles.
