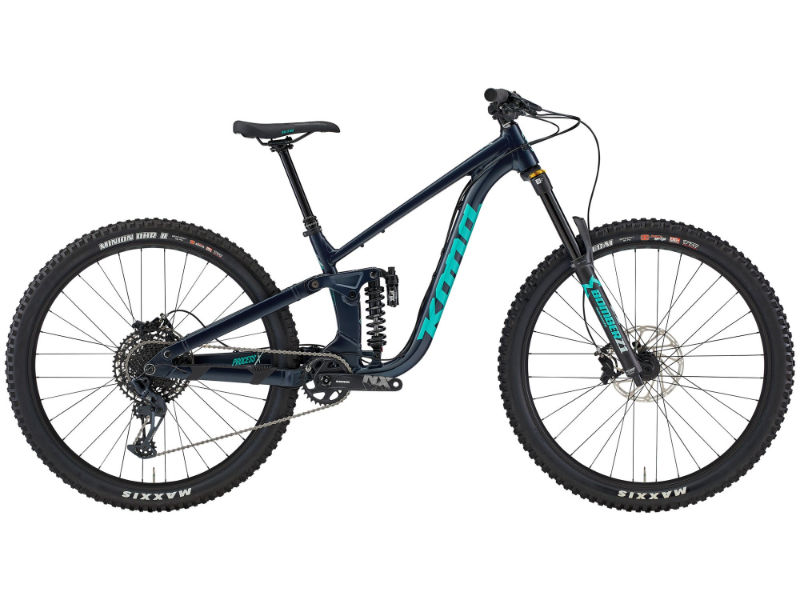

2026 Kona Process X geometry
Full frame geometry for the 2026 Kona Process X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 632 | 465 | 77.9 | 63.5 | 110 | 594 | 380 | 700 | 30 | 808 | 440 | 1246 | 44 |
| SM | 632 | 440 | 77.9 | 63.5 | 110 | 569 | 380 | 700 | 20 | 783 | 440 | 1221 | 44 |
| LG | 637 | 490 | 77.8 | 63.5 | 115 | 623 | 420 | 710 | 30 | 838 | 440 | 1276 | 44 |
| XL | 641 | 525 | 77.8 | 63.5 | 120 | 662 | 450 | 720 | 30 | 878 | 440 | 1316 | 44 |
All measurements in millimetres unless marked (°) for angles.
