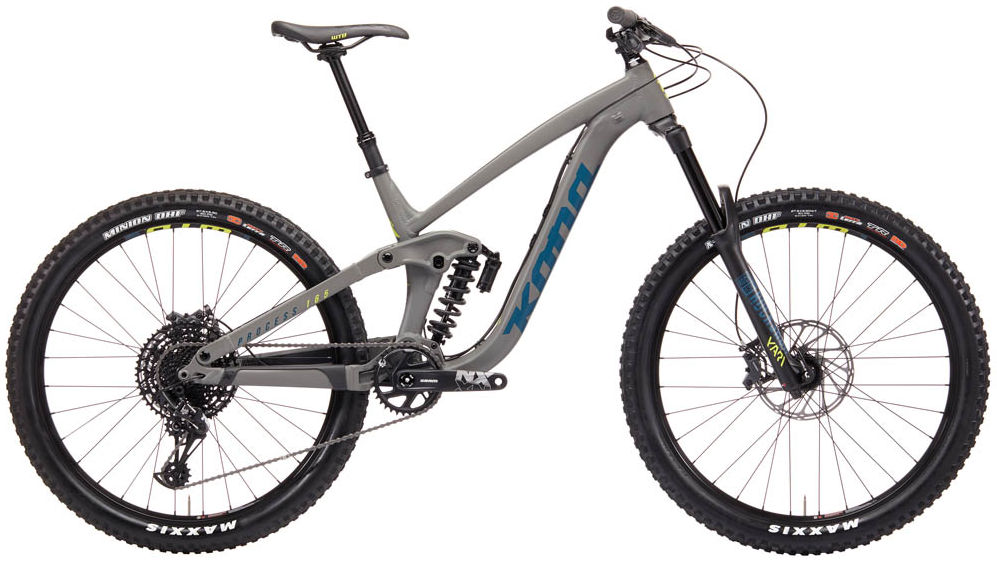

2019 Kona Process 165 geometry
Full frame geometry for the 2019 Kona Process 165, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 592 | 415 | 76.3 | 65 | 100 | 559 | 385 | 700 | 10 | 737 | 425 | 1162 | 46 |
| M | 601 | 440 | 76.2 | 65 | 110 | 588 | 410 | 703 | 10 | 766 | 425 | 1191 | 46 |
| L | 606 | 465 | 76.1 | 65 | 115 | 615 | 450 | 716 | 10 | 793 | 425 | 1218 | 46 |
| XL | 615 | 500 | 76 | 65 | 125 | 654 | 485 | 730 | 10 | 833 | 425 | 1257 | 46 |
All measurements in millimetres unless marked (°) for angles.
