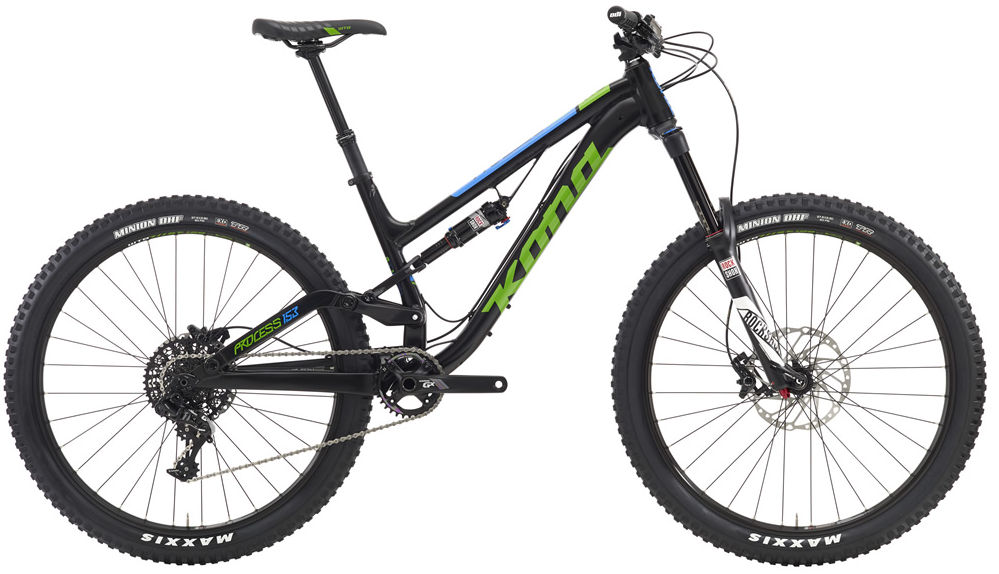

2016 Kona Process 153 geometry
Full frame geometry for the 2016 Kona Process 153, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 416 | 74 | 66.5 | 105 | 578 | 405 | 655 | 10 | 713 | 425 | 1138 | 42 |
| M | 596 | 435 | 74 | 66.5 | 115 | 601 | 405 | 655 | 10 | 736 | 425 | 1161 | 42 |
| L | 605 | 460 | 74 | 66.5 | 125 | 629 | 450 | 665 | 10 | 765 | 425 | 1190 | 42 |
| XL | 610 | 485 | 74 | 66.5 | 130 | 656 | 465 | 665 | 10 | 792 | 425 | 1217 | 42 |
All measurements in millimetres unless marked (°) for angles.
