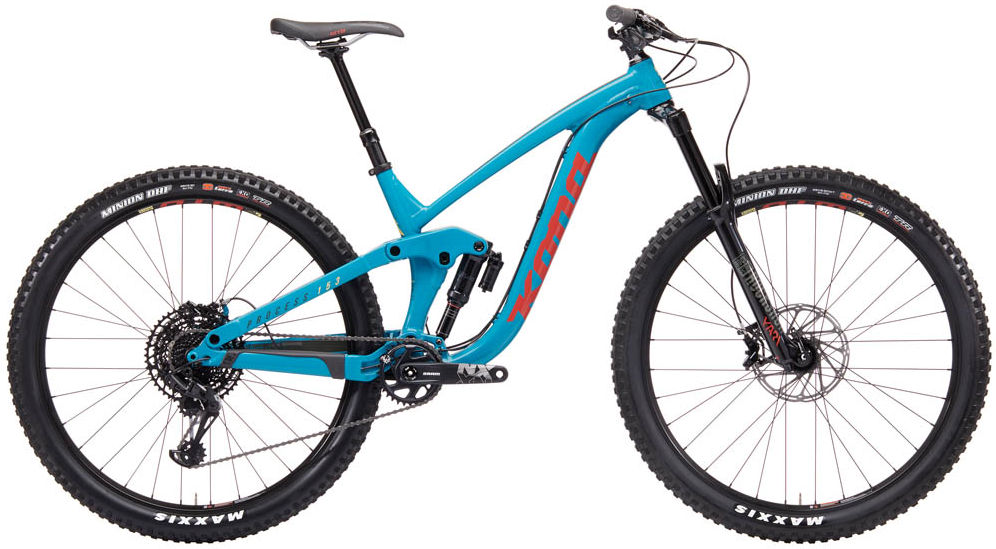

2019 Kona Process 153 29 Aluminium geometry
Full frame geometry for the 2019 Kona Process 153 29 Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 613 | 450 | 76 | 66 | 90 | 603 | 410 | 706 | 29 | 766 | 425 | 1189 | 51 |
| L | 621 | 475 | 75.8 | 66 | 100 | 632 | 450 | 720 | 29 | 795 | 425 | 1218 | 51 |
| XL | 630 | 510 | 75.7 | 66 | 110 | 671 | 485 | 733 | 29 | 834 | 425 | 1258 | 51 |
All measurements in millimetres unless marked (°) for angles.
