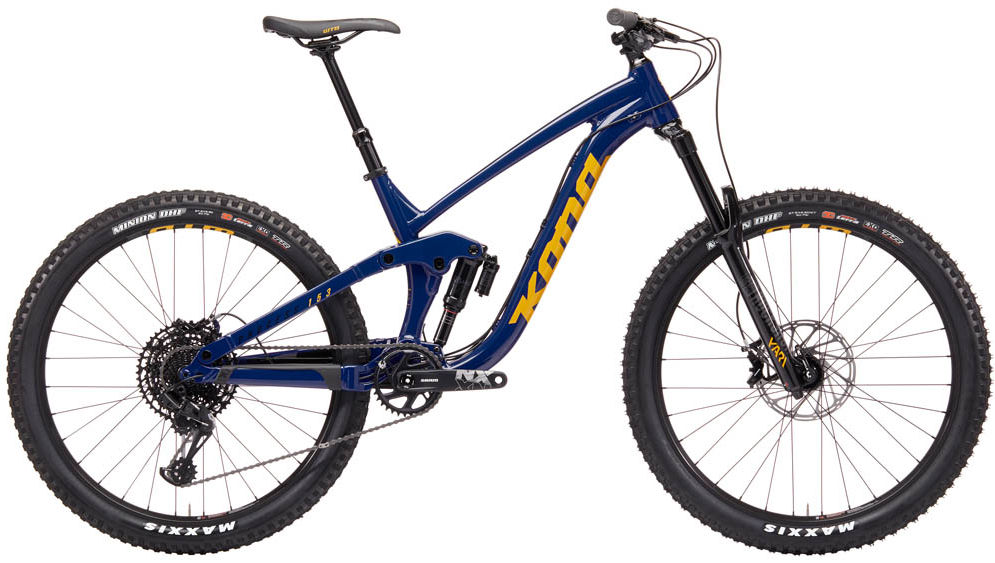

2019 Kona Process 153 27.5 Aluminium geometry
Full frame geometry for the 2019 Kona Process 153 27.5 Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 425 | 76 | 66 | 115 | 573 | 385 | 710 | 10 | 738 | 425 | 1163 | 46 |
| M | 607 | 450 | 76 | 66 | 120 | 600 | 410 | 715 | 10 | 765 | 425 | 1190 | 46 |
| L | 616 | 475 | 76 | 66 | 130 | 629 | 450 | 725 | 10 | 794 | 425 | 1219 | 46 |
| XL | 625 | 510 | 76 | 66 | 140 | 668 | 485 | 740 | 10 | 833 | 425 | 1258 | 46 |
All measurements in millimetres unless marked (°) for angles.
