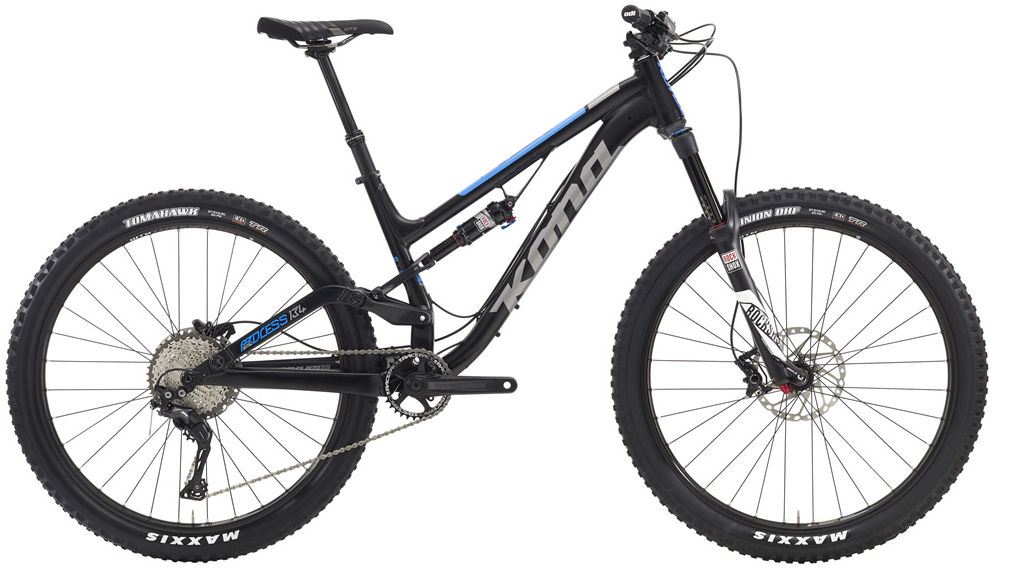

2016 Kona Process 134 geometry
Full frame geometry for the 2016 Kona Process 134, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 578 | 390 | 75 | 68 | 95 | 549 | 345 | 650 | 12 | 664 | 425 | 1089 | 42 |
| S | 596 | 416 | 74 | 68 | 115 | 582 | 405 | 650 | 12 | 697 | 425 | 1123 | 42 |
| M | 605 | 435 | 74 | 68 | 125 | 605 | 405 | 650 | 12 | 720 | 425 | 1145 | 42 |
| L | 610 | 460 | 74 | 68 | 130 | 631 | 450 | 660 | 12 | 747 | 425 | 1172 | 42 |
| XL | 619 | 485 | 74 | 68 | 140 | 660 | 465 | 660 | 12 | 776 | 425 | 1201 | 42 |
All measurements in millimetres unless marked (°) for angles.
