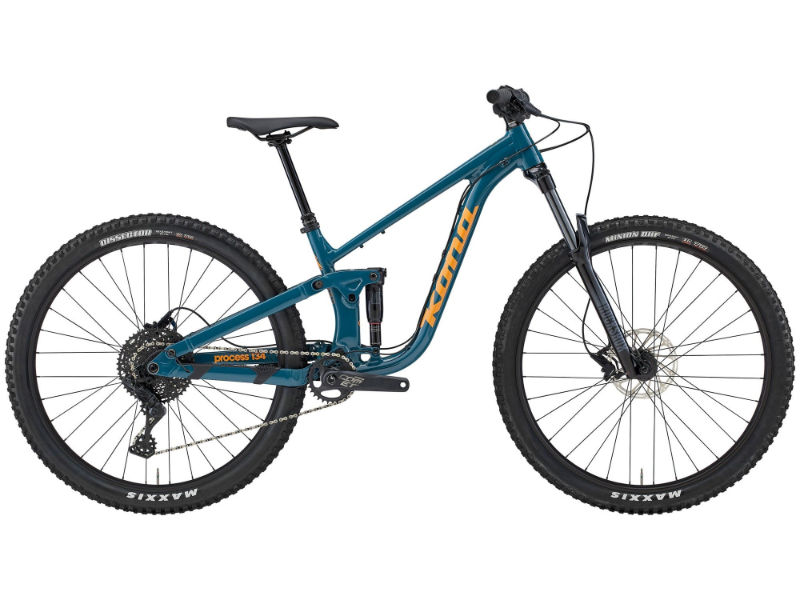

2026 Kona Process 134 G3 geometry
Full frame geometry for the 2026 Kona Process 134 G3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 611 | 430 | 76.9 | 65.5 | 100 | 572 | 380 | 700 | 23 | 740 | 435 | 1171 | 44 |
| M | 615 | 455 | 76.9 | 65.5 | 105 | 599 | 380 | 700 | 33 | 767 | 435 | 1200 | 44 |
| L | 625 | 480 | 76.7 | 65.5 | 116 | 628 | 420 | 710 | 33 | 797 | 435 | 1230 | 44 |
| XL | 635 | 515 | 76.6 | 65.5 | 127 | 666 | 450 | 720 | 33 | 836 | 435 | 1269 | 44 |
All measurements in millimetres unless marked (°) for angles.
