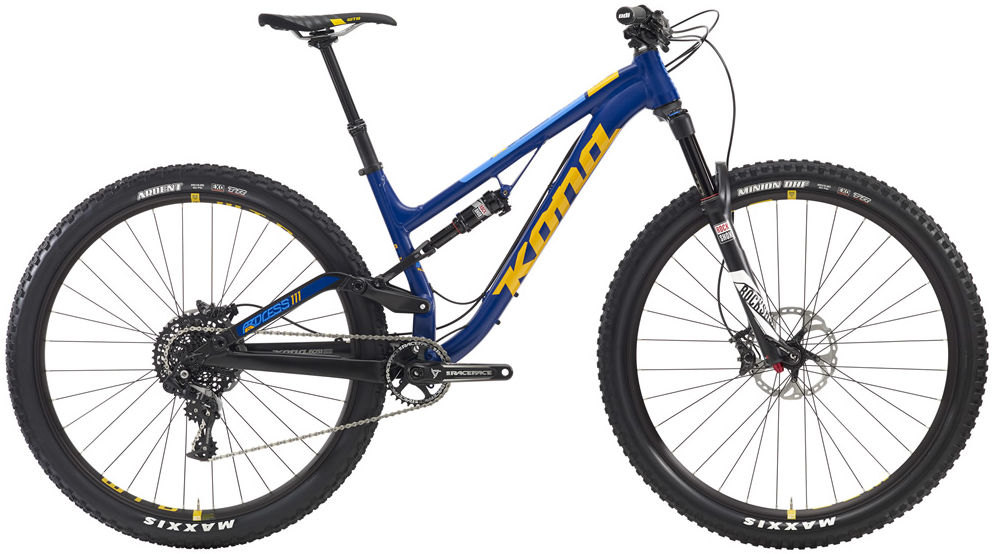

2016 Kona Process 111 geometry
Full frame geometry for the 2016 Kona Process 111, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 603 | 416 | 74 | 68 | 100 | 585 | 406 | 660 | 35 | 696 | 430 | 1124 | 46 |
| M | 608 | 435 | 74 | 68 | 105 | 605 | 406 | 660 | 35 | 717 | 430 | 1145 | 46 |
| L | 617 | 460 | 74 | 68 | 115 | 634 | 450 | 667 | 35 | 746 | 430 | 1173 | 46 |
| XL | 621 | 485 | 74 | 68 | 120 | 661 | 465 | 667 | 35 | 772 | 430 | 1200 | 46 |
All measurements in millimetres unless marked (°) for angles.
