2016 Kona · CD

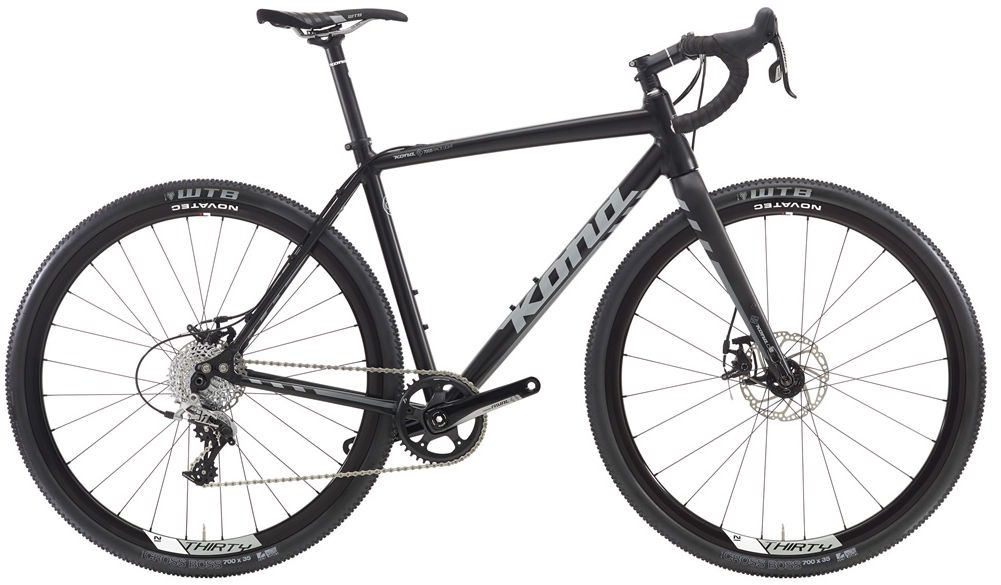

2016 Kona Private Jake geometry
Full frame geometry for the 2016 Kona Private Jake, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/48 | 537 | 371 | 75 | 70.5 | 115 | 515 | 480 | 740 | 70 | 588 | 420 | 998 | 45 |
| SM/49.5 | 546 | 379 | 74.5 | 70.5 | 125 | 530 | 495 | 755 | 70 | 599 | 420 | 1009 | 45 |
| M/51 | 560 | 384 | 74 | 70.5 | 140 | 545 | 510 | 770 | 70 | 610 | 420 | 1020 | 45 |
| ML/54 | 581 | 388 | 73.5 | 71.5 | 160 | 560 | 540 | 800 | 68 | 611 | 420 | 1022 | 45 |
| L/57 | 600 | 392 | 73 | 71.5 | 180 | 575 | 570 | 825 | 68 | 621 | 420 | 1027 | 45 |
| XL/59 | 619 | 400 | 72.5 | 71.5 | 200 | 595 | 590 | 845 | 68 | 635 | 420 | 1046 | 45 |
All measurements in millimetres unless marked (°) for angles.
