2016 Kona · DH

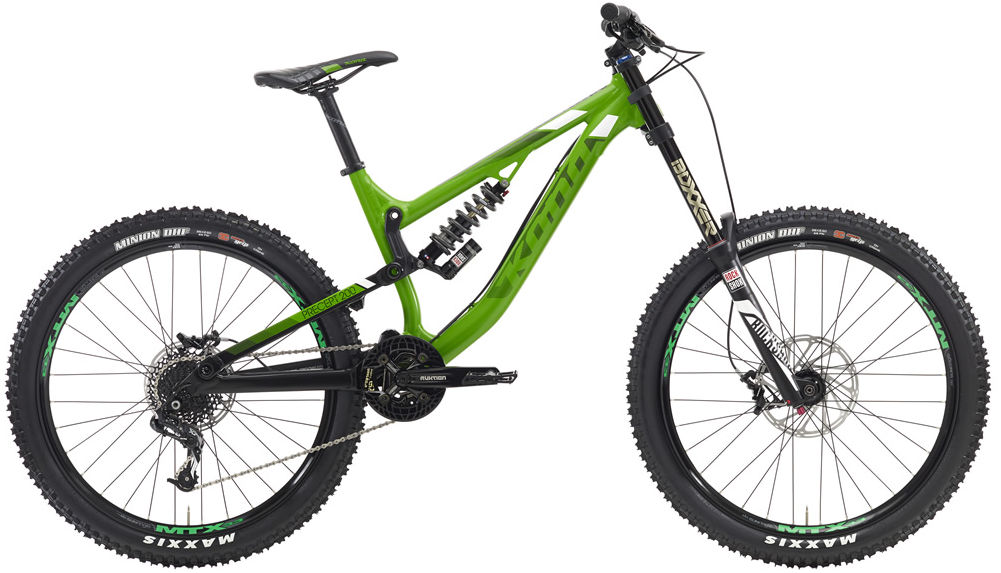

2016 Kona Precept 200 geometry
Full frame geometry for the 2016 Kona Precept 200, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 575 | 389 | 74 | 64 | 100 | 551 | 417 | 690 | 10 | 721 | 420 | 1141 | 42 |
| M | 584 | 422 | 74 | 64 | 110 | 587 | 417 | 690 | 10 | 758 | 420 | 1178 | 42 |
| L | 602 | 451 | 74 | 64 | 130 | 623 | 417 | 690 | 10 | 796 | 420 | 1216 | 42 |
All measurements in millimetres unless marked (°) for angles.
