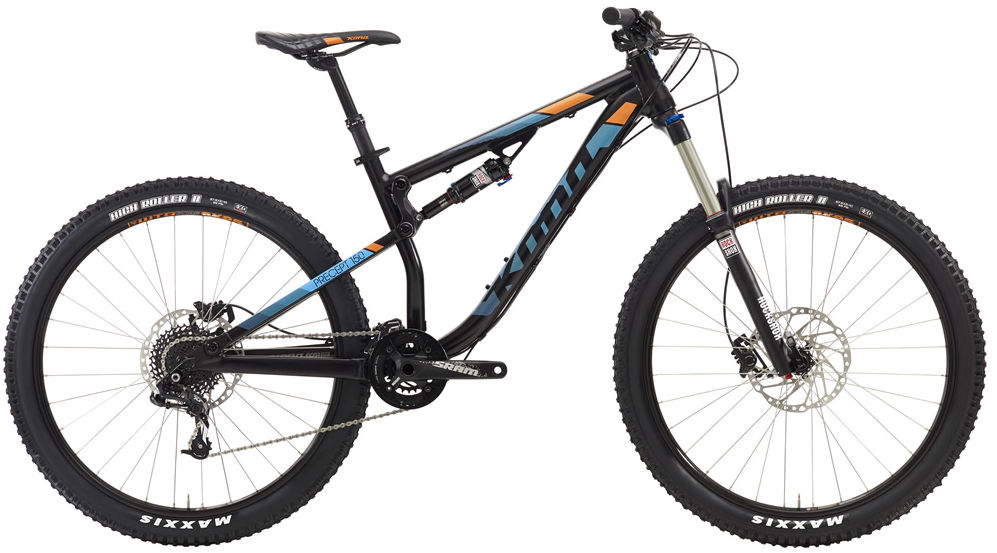

2016 Kona Precept 150 geometry
Full frame geometry for the 2016 Kona Precept 150, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 416 | 76 | 66.5 | 105 | 567 | 395 | 725 | 10 | 712 | 425 | 1137 | 42 |
| M | 596 | 435 | 75 | 66.5 | 115 | 591 | 415 | 725 | 10 | 735 | 425 | 1160 | 42 |
| L | 605 | 460 | 75 | 66.5 | 125 | 620 | 440 | 725 | 10 | 764 | 425 | 1189 | 42 |
| XL | 610 | 485 | 75 | 66.5 | 130 | 648 | 465 | 730 | 10 | 791 | 425 | 1216 | 42 |
All measurements in millimetres unless marked (°) for angles.
