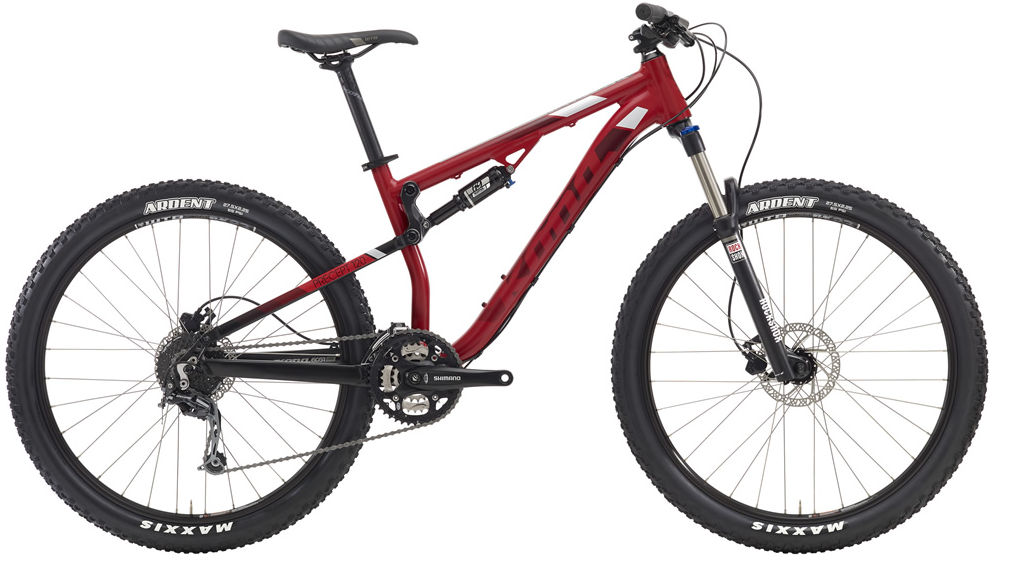

2016 Kona Precept 120 geometry
Full frame geometry for the 2016 Kona Precept 120, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 596 | 416 | 76 | 68 | 115 | 569 | 396 | 715 | 12 | 697 | 425 | 1122 | 42 |
| M | 605 | 435 | 75 | 68 | 125 | 593 | 415 | 725 | 12 | 720 | 425 | 1145 | 42 |
| L | 610 | 460 | 75 | 68 | 130 | 620 | 440 | 725 | 12 | 747 | 425 | 1172 | 42 |
| XL | 619 | 485 | 75 | 68 | 140 | 650 | 465 | 730 | 12 | 776 | 425 | 1200 | 42 |
All measurements in millimetres unless marked (°) for angles.
