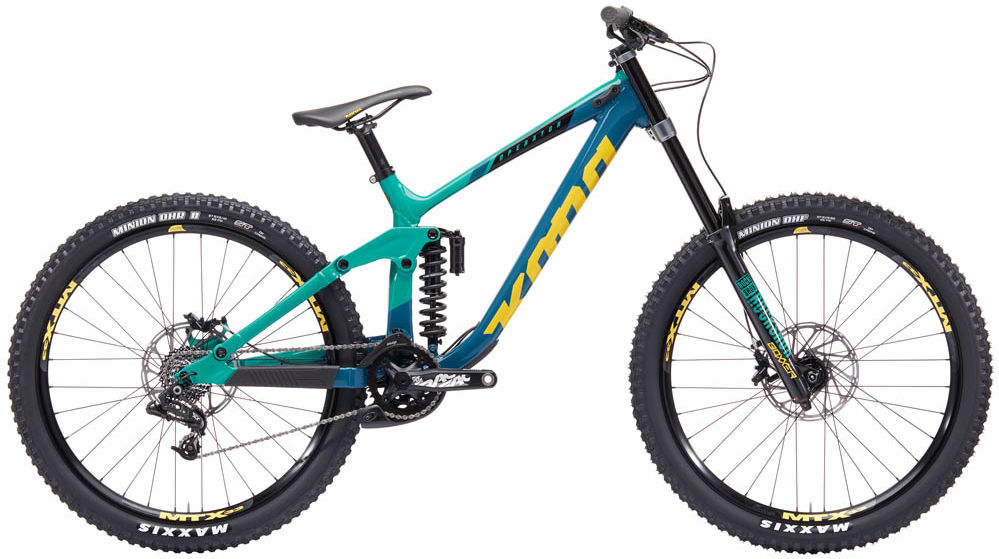

2019 Kona Operator MK II geometry
Full frame geometry for the 2019 Kona Operator MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 615 | 435 | 76.5 | 63 | 120 | 584 | 410 | 720 | 10 | 797 | 423 | 1220 | 48 |
| L | 620 | 460 | 76.5 | 63 | 125 | 611 | 410 | 720 | 10 | 825 | 423 | 1248 | 48 |
| XL | 629 | 485 | 76 | 63 | 135 | 641 | 410 | 720 | 10 | 855 | 423 | 1277 | 48 |
All measurements in millimetres unless marked (°) for angles.
