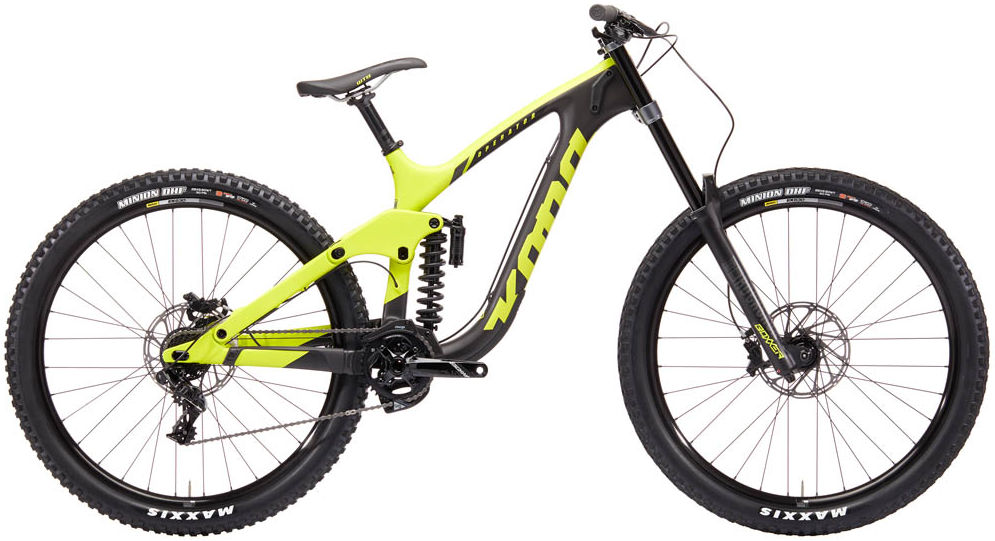

2019 Kona Operator CR geometry
Full frame geometry for the 2019 Kona Operator CR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 613 | 435 | 79.5 | 62 | 117 | 548 | 440 | 758 | 20 | 806 | 425 | 1233 | 56 |
| L | 618 | 460 | 79.5 | 62 | 122 | 576 | 440 | 755 | 20 | 833 | 425 | 1260 | 56 |
| M-High | 618 | 445 | 79.5 | 62 | 117 | 560 | 440 | 760 | 22 | 815 | 425 | 1241 | 56 |
| L-High | 623 | 470 | 79.5 | 62 | 122 | 588 | 440 | 757 | 22 | 842 | 425 | 1269 | 56 |
All measurements in millimetres unless marked (°) for angles.
