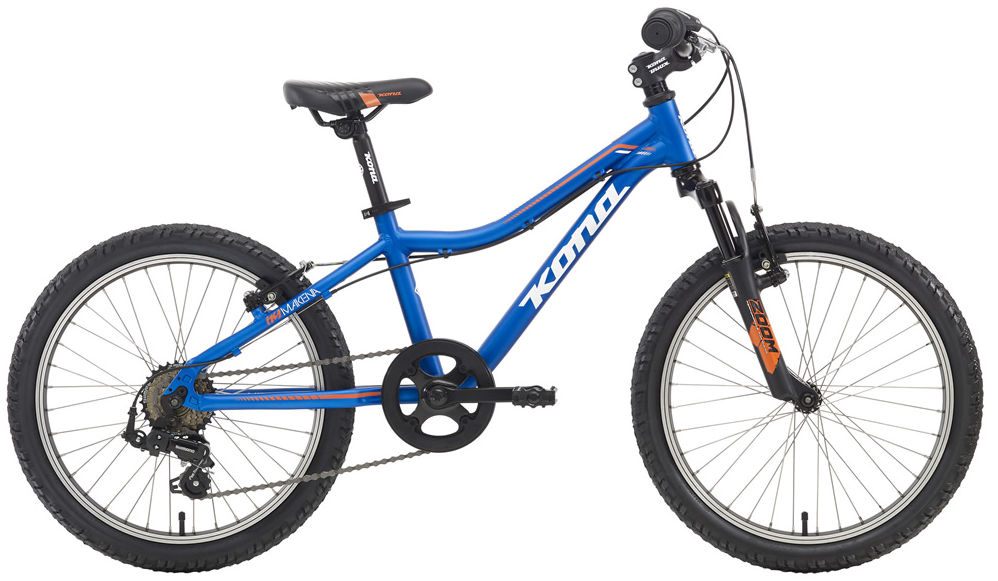

2016 Kona Makena MK I geometry
Full frame geometry for the 2016 Kona Makena MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11 | 414 | 323 | 73 | 70 | 95 | 450 | 280 | 515 | 0 | 522 | 375 | 897 | 43 |
All measurements in millimetres unless marked (°) for angles.
