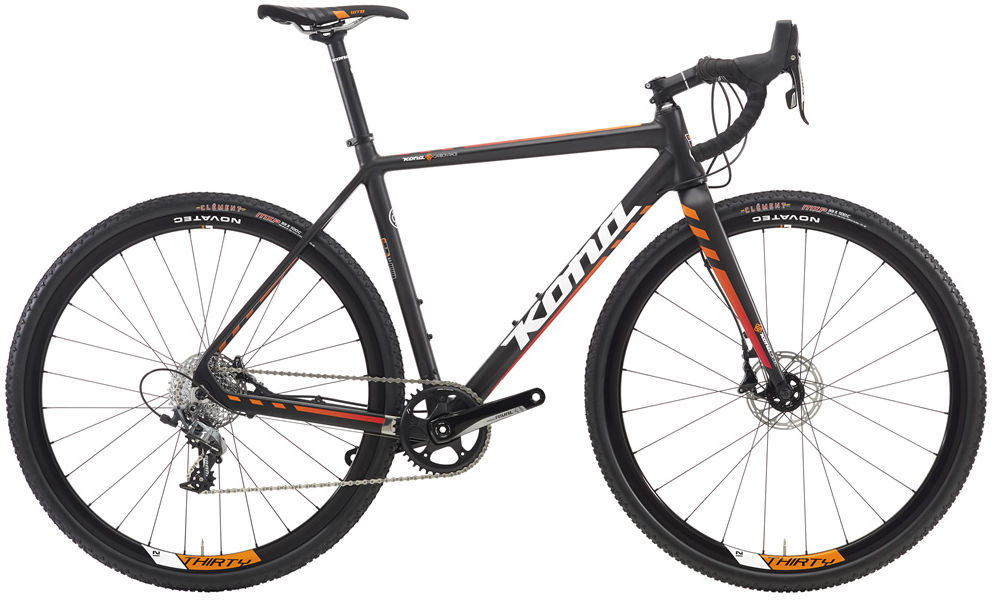

2016 Kona Major Jake MK I geometry
Full frame geometry for the 2016 Kona Major Jake MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM/49 | 525 | 385 | 74.2 | 71.2 | 110 | 535 | 490 | 732 | 62 | 595 | 425 | 1012 | 47 |
| M/53 | 552 | 393 | 74.2 | 72.2 | 135 | 550 | 530 | 780 | 62 | 603 | 425 | 1020 | 47 |
| ML/56 | 571 | 397 | 73.7 | 72.2 | 155 | 565 | 560 | 797 | 62 | 613 | 425 | 1030 | 47 |
| L/59 | 590 | 401 | 73.2 | 72.2 | 175 | 580 | 590 | 815 | 62 | 623 | 425 | 1041 | 47 |
| XL/61 | 601 | 418 | 72.7 | 72.5 | 185 | 605 | 610 | 831 | 62 | 640 | 425 | 1057 | 47 |
| XXL/63 | 615 | 421 | 72.5 | 72.5 | 200 | 615 | 630 | 865 | 62 | 648 | 425 | 1065 | 47 |
All measurements in millimetres unless marked (°) for angles.
