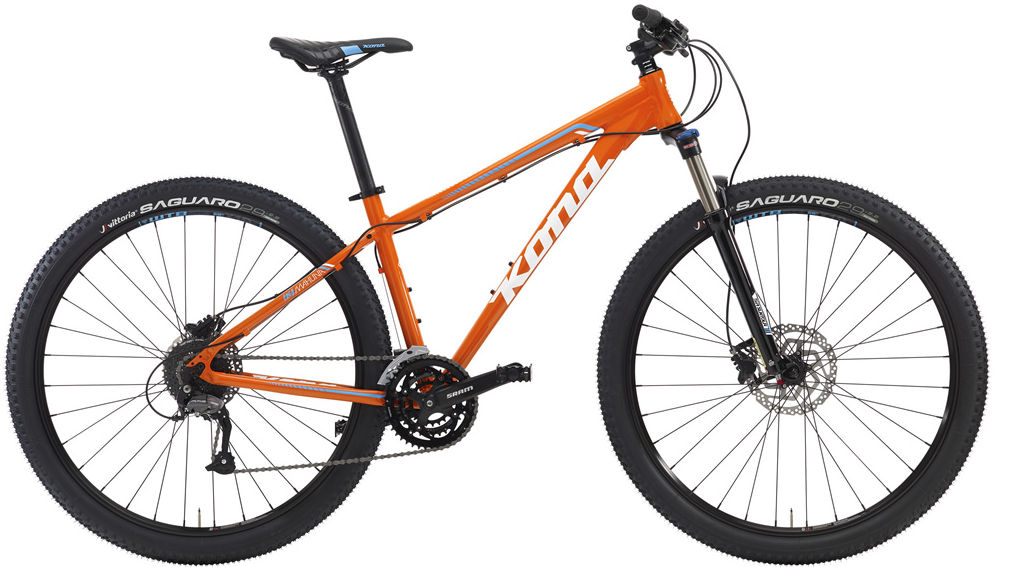

2016 Kona Mahuna geometry
Full frame geometry for the 2016 Kona Mahuna, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 404 | 74 | 69 | 95 | 578 | 370 | 657 | 60 | 666 | 450 | 1109 | 46 |
| M | 617 | 428 | 74 | 69 | 105 | 605 | 420 | 701 | 60 | 694 | 450 | 1137 | 46 |
| L | 627 | 453 | 74 | 69 | 115 | 633 | 470 | 745 | 60 | 723 | 450 | 1166 | 46 |
| XL | 636 | 484 | 74 | 69 | 125 | 666 | 530 | 800 | 60 | 756 | 450 | 1200 | 46 |
All measurements in millimetres unless marked (°) for angles.
