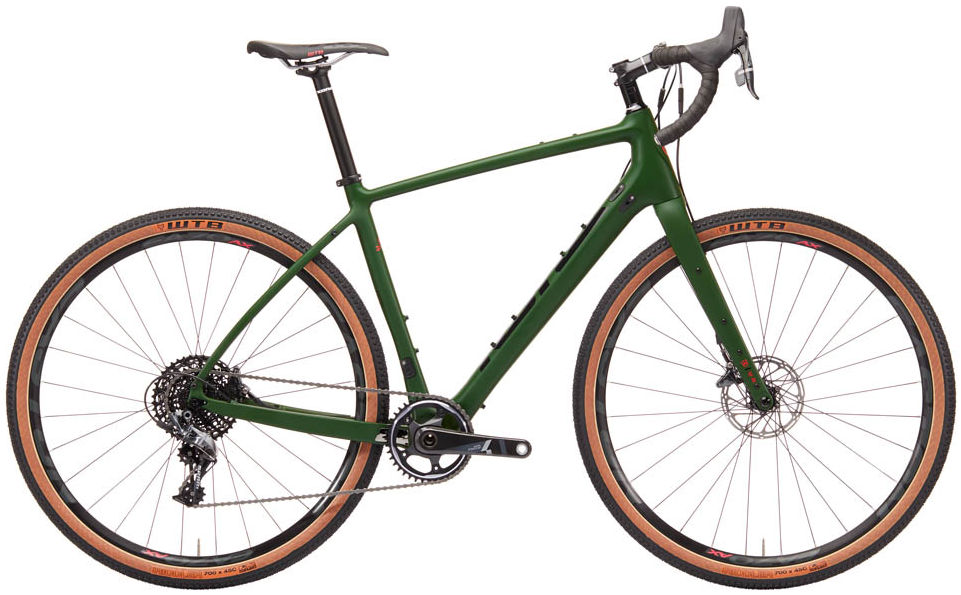

2019 Kona Libre DL geometry
Full frame geometry for the 2019 Kona Libre DL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 575 | 378 | 74 | 70.5 | 137 | 543 | 455 | 758 | 75 | 613 | 440 | 1042 | 50 |
| 49 | 590 | 383 | 73.5 | 70.5 | 153 | 558 | 490 | 782 | 75 | 623 | 440 | 1052 | 50 |
| 51 | 610 | 386 | 73 | 71 | 175 | 572 | 510 | 803 | 72 | 628 | 440 | 1058 | 50 |
| 54 | 630 | 389 | 72.5 | 71 | 196 | 588 | 540 | 830 | 72 | 638 | 440 | 1068 | 40 |
| 55 | 660 | 394 | 72 | 71 | 230 | 608 | 550 | 850 | 70 | 654 | 440 | 1084 | 50 |
All measurements in millimetres unless marked (°) for angles.
