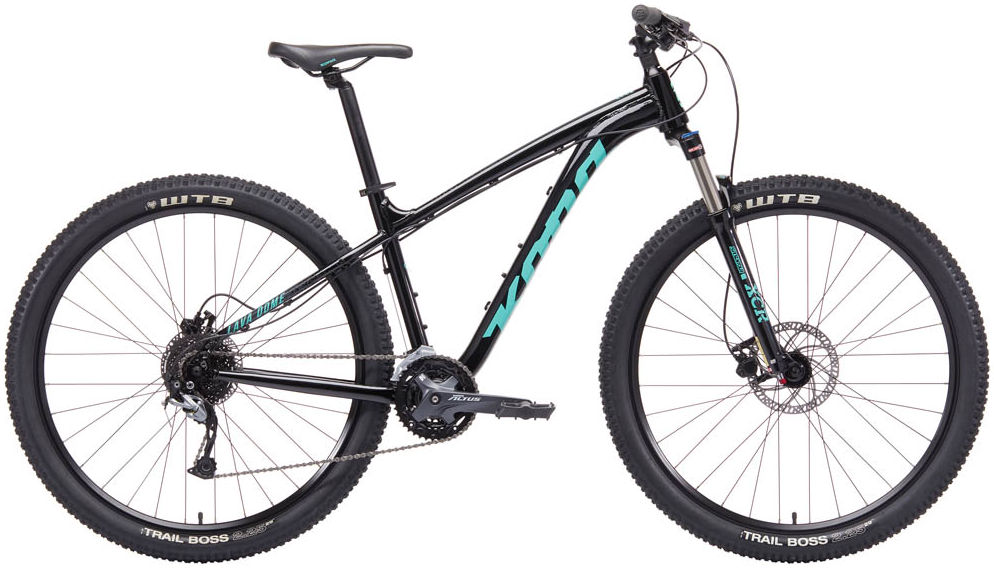

2019 Kona Lava Dome MK II geometry
Full frame geometry for the 2019 Kona Lava Dome MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 606 | 404 | 74 | 69 | 95 | 578 | 370 | 733 | 60 | 671 | 455 | 1119 | 51 |
| M | 616 | 428 | 74 | 69 | 105 | 605 | 420 | 738 | 60 | 699 | 455 | 1147 | 51 |
| L | 625 | 453 | 74 | 69 | 115 | 632 | 470 | 743 | 60 | 727 | 455 | 1176 | 51 |
| XL | 634 | 484 | 74 | 69 | 125 | 666 | 530 | 763 | 60 | 761 | 455 | 1210 | 51 |
All measurements in millimetres unless marked (°) for angles.
