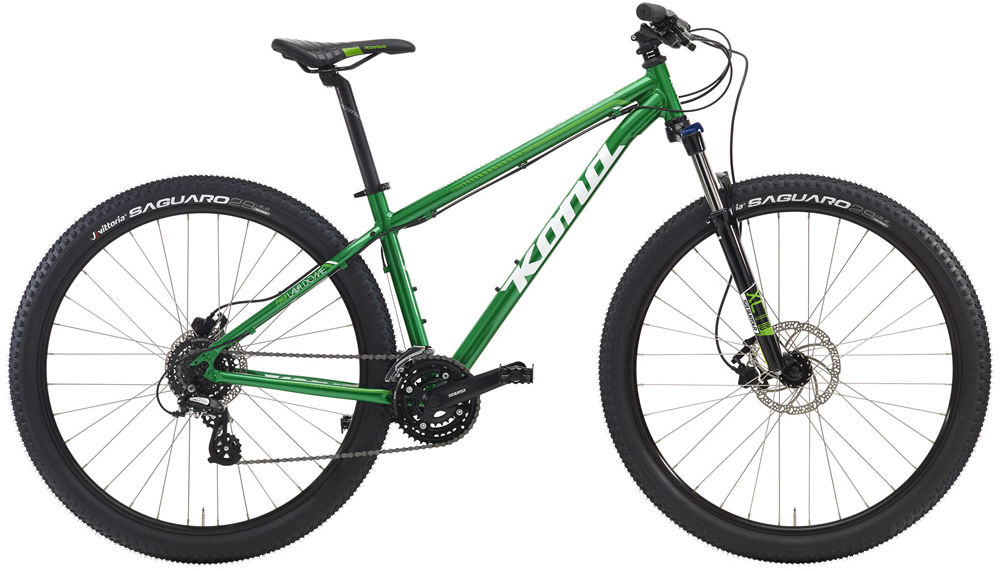

2016 Kona Lava Dome MK I geometry
Full frame geometry for the 2016 Kona Lava Dome MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 399 | 74 | 69 | 95 | 578 | 370 | 660 | 60 | 668 | 450 | 1111 | 46 |
| M | 634 | 423 | 74 | 69 | 105 | 605 | 420 | 700 | 60 | 695 | 450 | 1139 | 46 |
| L | 644 | 448 | 74 | 69 | 115 | 633 | 470 | 745 | 60 | 724 | 450 | 1168 | 46 |
| XL | 653 | 479 | 74 | 69 | 125 | 666 | 530 | 794 | 60 | 758 | 450 | 1202 | 46 |
All measurements in millimetres unless marked (°) for angles.
