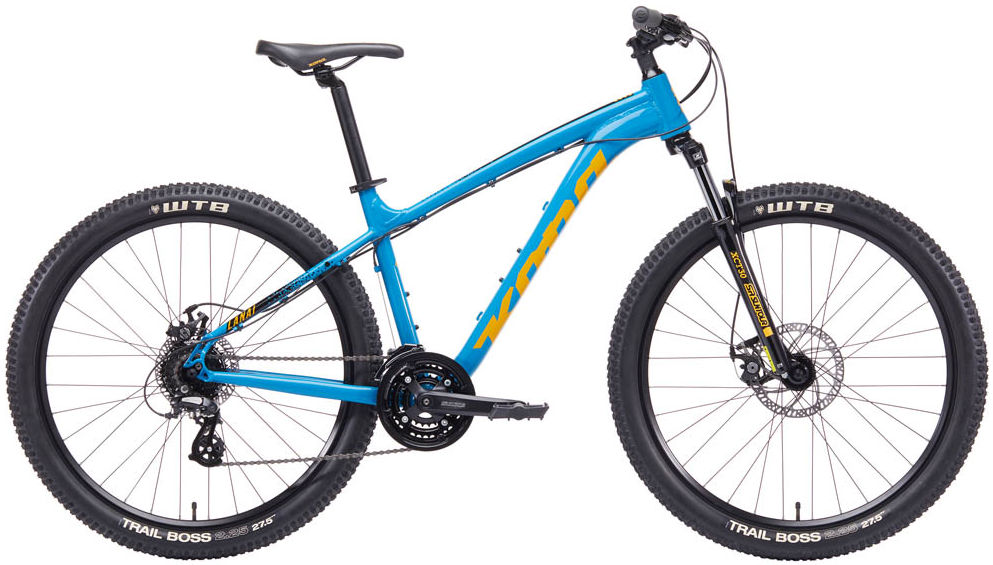

2019 Kona Lana'i MK II geometry
Full frame geometry for the 2019 Kona Lana'i MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 559 | 395 | 74 | 68 | 100 | 555 | 331 | 677 | 30 | 652 | 425 | 1075 | 39 |
| S | 593 | 400 | 74 | 68.5 | 100 | 570 | 370 | 716 | 50 | 661 | 435 | 1090 | 42 |
| M | 607 | 425 | 74 | 68.5 | 115 | 599 | 420 | 723 | 50 | 691 | 435 | 1121 | 42 |
| L | 616 | 449 | 74 | 68.5 | 125 | 626 | 470 | 729 | 50 | 719 | 435 | 1149 | 42 |
| XL | 630 | 479 | 74 | 68.5 | 140 | 660 | 530 | 752 | 50 | 755 | 435 | 1185 | 42 |
All measurements in millimetres unless marked (°) for angles.
