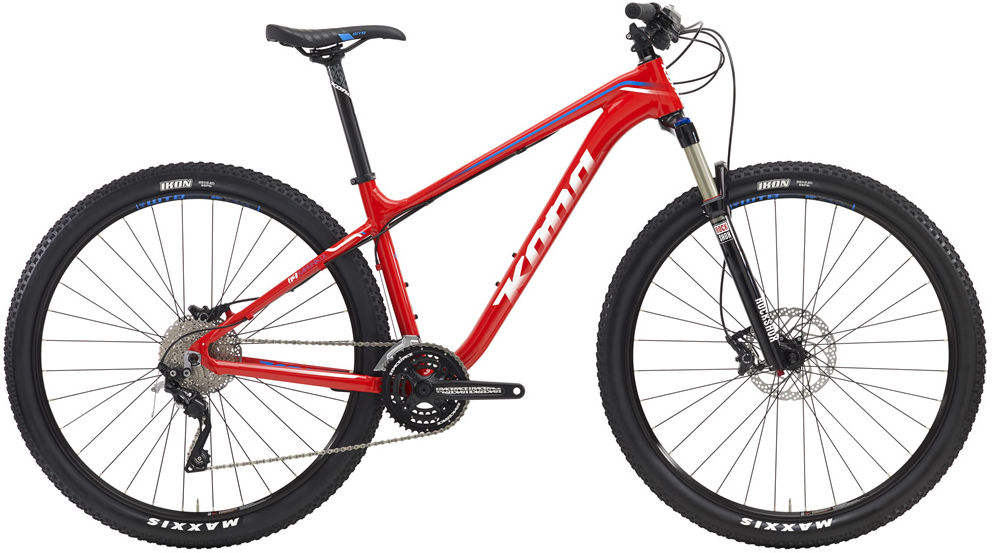

2016 Kona Kahuna geometry
Full frame geometry for the 2016 Kona Kahuna, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 404 | 74 | 69 | 95 | 578 | 370 | 681 | 60 | 666 | 445 | 1104 | 46 |
| M | 617 | 428 | 74 | 69 | 105 | 605 | 420 | 685 | 60 | 694 | 445 | 1132 | 46 |
| L | 626 | 454 | 74 | 69 | 115 | 633 | 470 | 695 | 60 | 723 | 445 | 1161 | 46 |
| XL | 635 | 484 | 74 | 69 | 125 | 666 | 530 | 719 | 60 | 756 | 445 | 1195 | 46 |
All measurements in millimetres unless marked (°) for angles.
