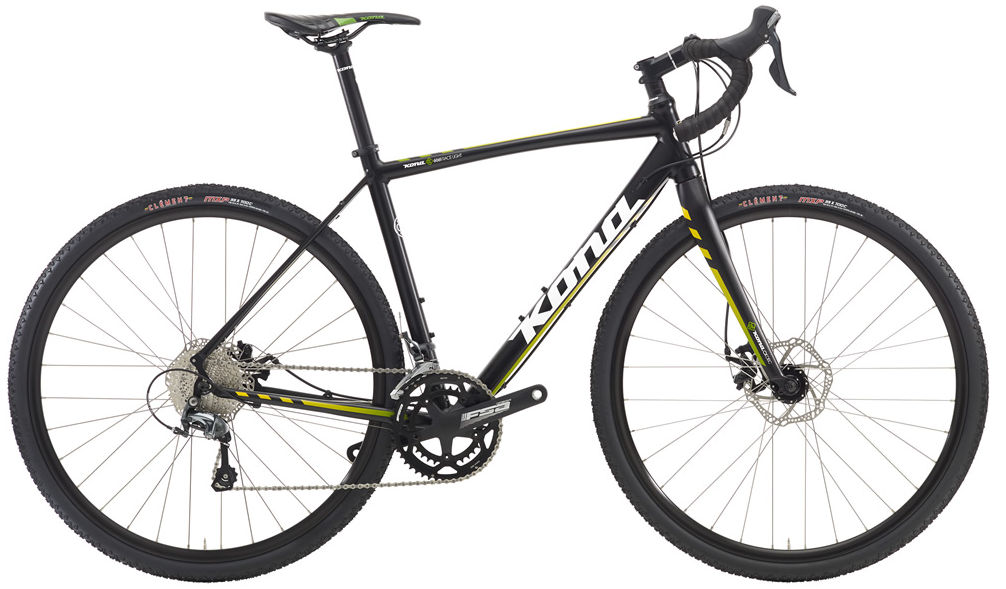

2016 Kona Jake geometry
Full frame geometry for the 2016 Kona Jake, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/48 | 543 | 370 | 75 | 70.5 | 115 | 515 | 480 | 735 | 70 | 592 | 430 | 1012 | 48 |
| SM/49.5 | 552 | 377 | 74.5 | 70.5 | 125 | 530 | 495 | 750 | 70 | 603 | 430 | 1023 | 48 |
| M/51 | 567 | 383 | 74 | 70.5 | 140 | 545 | 510 | 765 | 70 | 613 | 430 | 1034 | 48 |
| ML/54 | 587 | 386 | 73.5 | 71.5 | 160 | 560 | 540 | 795 | 68 | 614 | 430 | 1035 | 48 |
| L/57 | 606 | 390 | 73 | 71.5 | 180 | 575 | 570 | 820 | 68 | 624 | 430 | 1045 | 48 |
| XL/59 | 625 | 398 | 72.5 | 71.5 | 200 | 595 | 590 | 840 | 68 | 639 | 430 | 1060 | 48 |
All measurements in millimetres unless marked (°) for angles.
