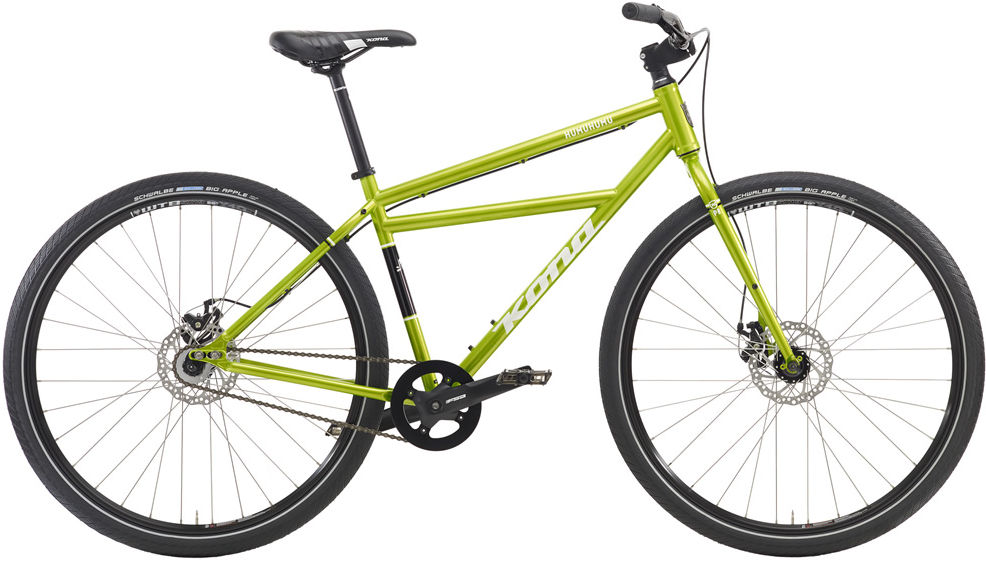

2016 Kona Humuhumu geometry
Full frame geometry for the 2016 Kona Humuhumu, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 574 | 408 | 73 | 70 | 110 | 584 | 406 | 680 | 74 | 643 | 450 | 1082 | 45 |
| M | 593 | 429 | 73 | 70 | 130 | 610 | 457 | 725 | 74 | 670 | 450 | 1109 | 45 |
| L | 612 | 448 | 73 | 70 | 150 | 635 | 508 | 770 | 74 | 696 | 450 | 1136 | 45 |
All measurements in millimetres unless marked (°) for angles.
