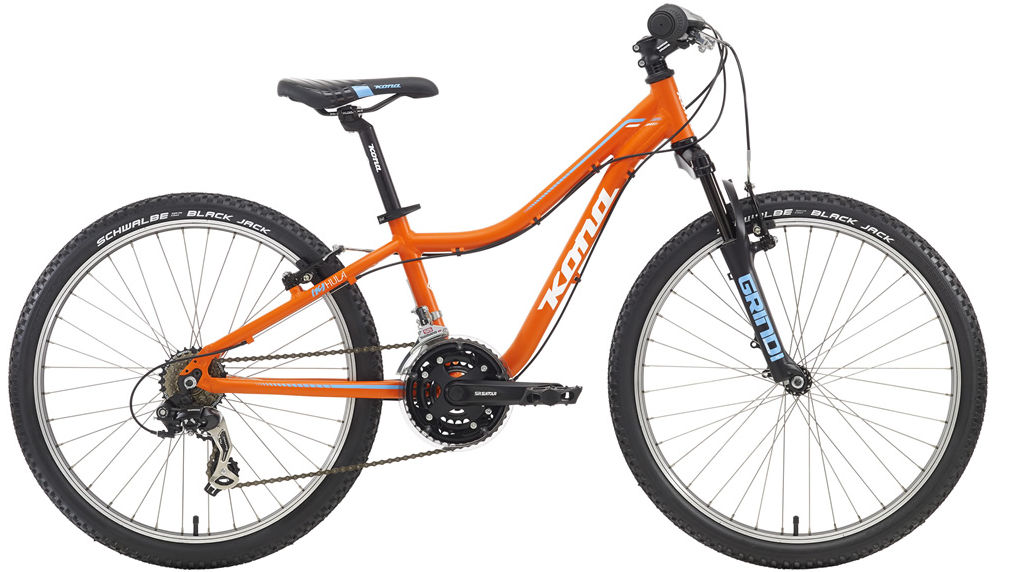

2016 Kona Hula MK I geometry
Full frame geometry for the 2016 Kona Hula MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 395 | 330 | 71 | 70 | 100 | 500 | 305 | 473 | 20 | 547 | 420 | 966 | 41 |
All measurements in millimetres unless marked (°) for angles.
