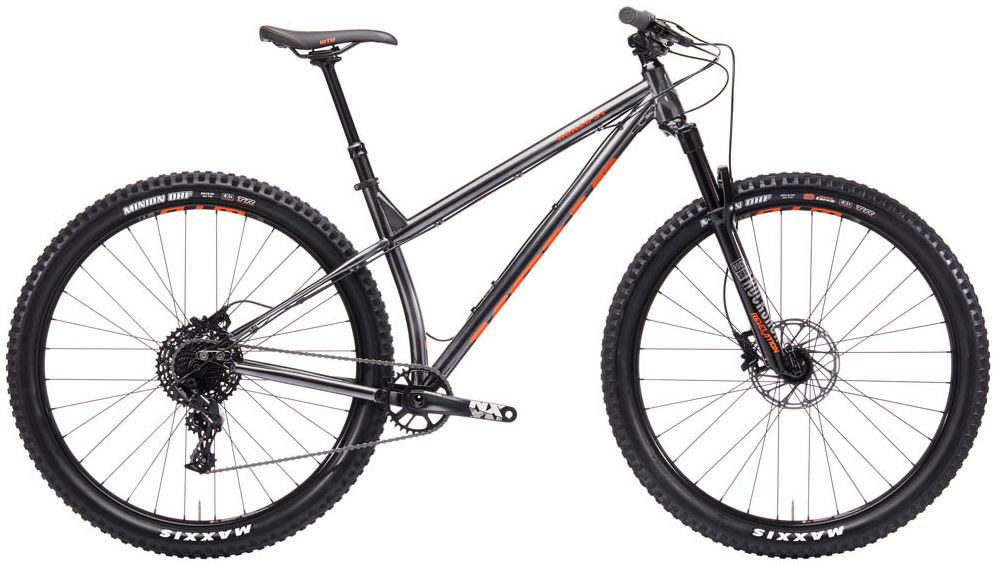

2019 Kona Honzo ST MK II geometry
Full frame geometry for the 2019 Kona Honzo ST MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 624 | 425 | 74.5 | 68 | 90 | 598 | 381 | 713 | 65 | 703 | 415 | 1110 | 46 |
| M | 633 | 450 | 74.5 | 68 | 100 | 626 | 432 | 711 | 65 | 732 | 415 | 1139 | 46 |
| L | 642 | 475 | 74.5 | 68 | 110 | 655 | 478 | 710 | 65 | 761 | 415 | 1168 | 46 |
| XL | 651 | 510 | 74.5 | 68 | 120 | 693 | 508 | 708 | 65 | 799 | 415 | 1206 | 46 |
All measurements in millimetres unless marked (°) for angles.
