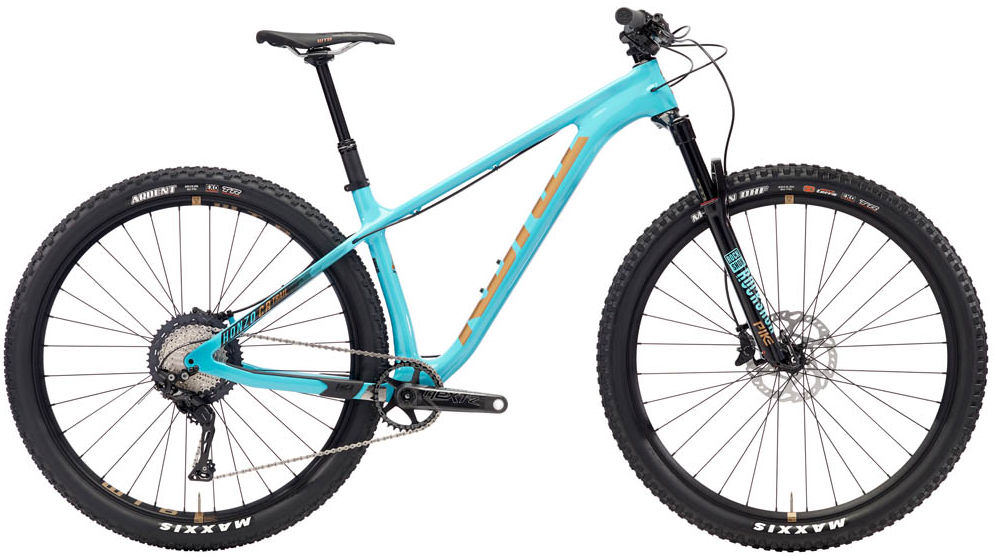

2018 Kona Honzo CR geometry
Full frame geometry for the 2018 Kona Honzo CR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 631 | 425 | 75 | 68 | 95 | 594 | 370 | 730 | 65 | 709 | 415 | 1116 | 51 |
| M | 636 | 450 | 75 | 68 | 100 | 620 | 420 | 730 | — | 736 | 415 | 1143 | 51 |
| L | 640 | 475 | 75 | 68 | 105 | 647 | 470 | 740 | — | 763 | 415 | 1170 | 51 |
| XL | 645 | 485 | 75 | 68 | 110 | 657 | 530 | 760 | — | 772 | 415 | 1182 | 51 |
All measurements in millimetres unless marked (°) for angles.
